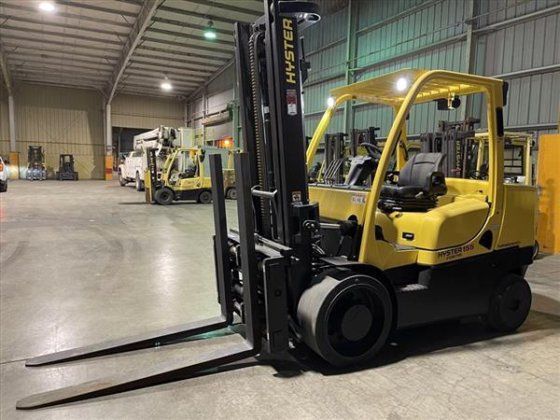

Hyster S155FT DuraMatch Diesel
Contents:
Dimensions
| Length To Fork Face | 9.62 ft in (2930 mm) |
| Overall Width | 4.72 ft in (1438 mm) |
| Overall Height - Mast Lowered | 8.85 ft in (2697 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 4.45 in (113 mm) |
| Max Fork Height | 11.16 ft in (3400 mm) |
| Right Angle Stack | 14.13 ft in (4304 mm) |
| Turning Radius | 8.49 ft in (2585 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lift Speed | 104.3 ft/min (31.8 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 15500 lb (7030.69 kg) |
| Lower Speed | 84.6 ft/min (25.79 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 4.5L |
| Power | 77.8 hp (58.1 kw) |
| Torque | 225 lb ft (305.1 Nm) |
| Power Measured @ | 2050 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Torque Measured @ | 1300 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 21252.6 lb (9640 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
