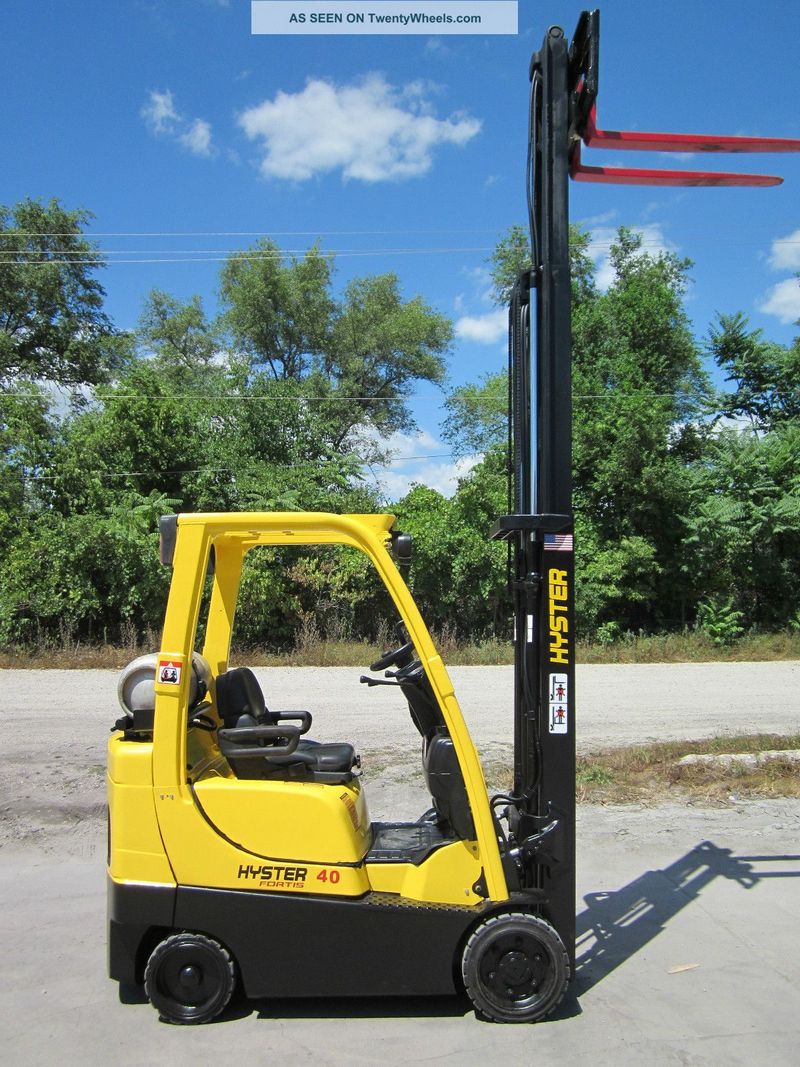

Hyster S40FT (Fortis Advance+)
Contents:
Dimensions
| Length To Fork Face | 7.31 ft in (2226 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2135 mm) |
| Wheelbase | 4.7 ft in (1430 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Max Fork Height | 10.81 ft in (3292 mm) |
| Right Angle Stack | 7.64 ft in (2328 mm) |
| Turning Radius | 6.4 ft in (1950 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lift Speed | 119 ft/min (36.28 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lower Speed | 86 ft/min (26.22 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Engine Model | 2.4L |
| Power | 62 hp (46.3 kw) |
| Torque | 123 lb ft (166.8 Nm) |
| Power Measured @ | 2600 rpm |
| Displacement | 146.5 cu in (2.4 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LP/Gas |
Operational
| Operating Weight | 7837.5 lb (3555 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (16.9 km/h) |
