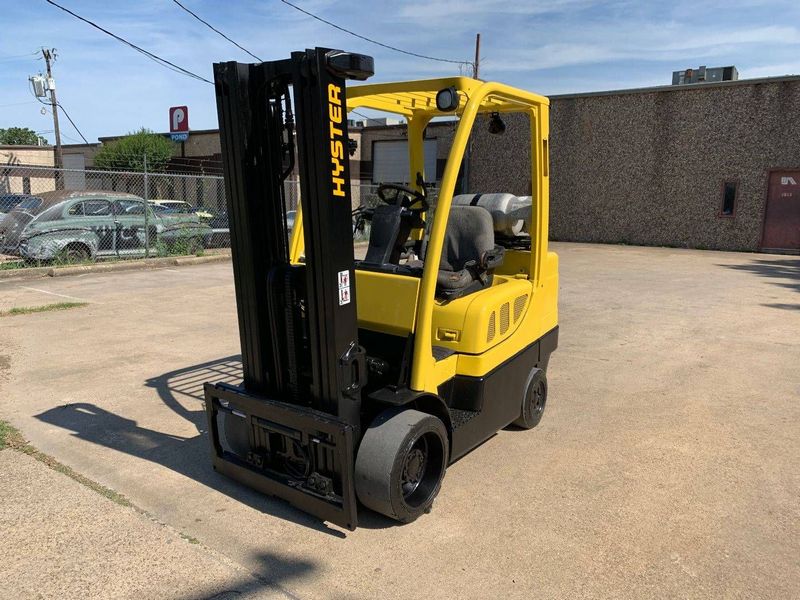

Hyster S70FT (Fortis Advance+)
Contents:
Dimensions
| Length To Fork Face | 7.9 ft in (2406 mm) |
| Overall Width | 3.8 ft in (1158 mm) |
| Overall Height - Mast Lowered | 7.17 ft in (2185 mm) |
| Wheelbase | 4.7 ft in (1430 mm) |
| Ground Clearance | 3.59 in (91 mm) |
| Max Fork Height | 10.53 ft in (3209 mm) |
| Right Angle Stack | 8.22 ft in (2504 mm) |
| Turning Radius | 6.96 ft in (2119 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lift Speed | 104 ft/min (31.7 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 7000 lb (3175.15 kg) |
| Lower Speed | 88 ft/min (26.83 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2374 |
| Engine Model | 2.4L |
| Power | 62 hp (46.3 kw) |
| Torque | 123 lb ft (166.8 Nm) |
| Power Measured @ | 2600 rpm |
| Displacement | 146.5 cu in (2.4 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | LP/Gas |
Operational
| Operating Weight | 10604.3 lb (4810 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (16.9 km/h) |
