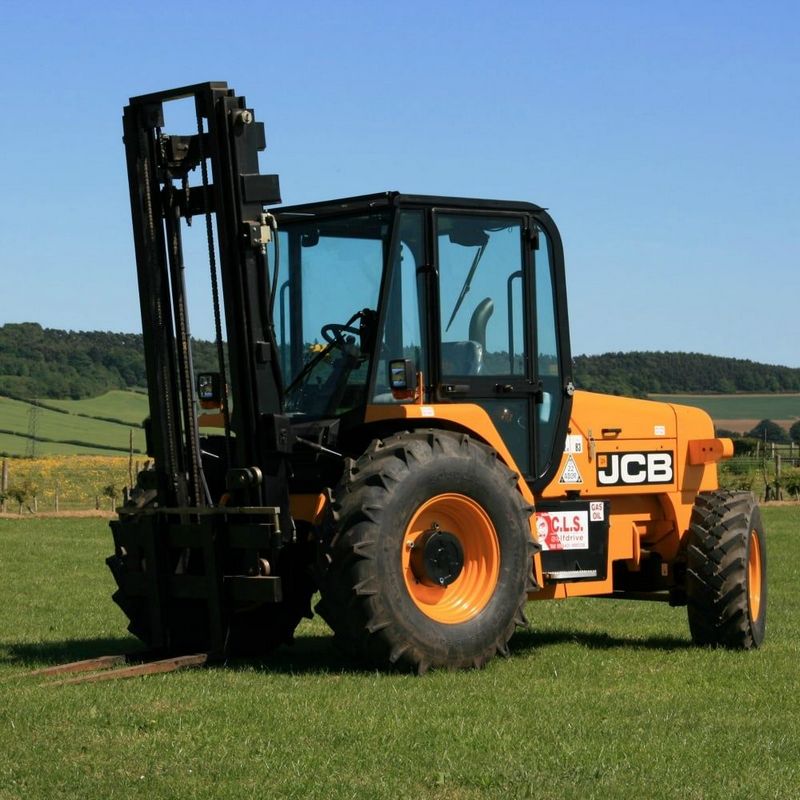

JCB 926
Contents:
Dimensions
| Length To Fork Face | 11.68 ft in (3560 mm) |
| Overall Width | 7.22 ft in (2200 mm) |
| Overall Height - Mast Lowered | 9.68 ft in (2950 mm) |
| Wheelbase | 6.99 ft in (2130 mm) |
| Ground Clearance | 11.82 in (300 mm) |
| Height To Top Of Overhead Guard | 8.44 ft in (2570 mm) |
| Max Fork Height | 15.69 ft in (4780 mm) |
| Angle Of Departure | 53 degrees |
| Turning Radius | 14.74 ft in (4490 mm) |
Mast
| Mast Tip Forward | 18 degrees |
| Mast Tip Rear | 10 degrees |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5732.02 lb (2600 kg) |
Tyres
| Standard | 16.5/85-24 |
| Standard Front | Traction |
| Tyres Type | Traction |
Electrical System
| Battery Capacity | 120 Ah |
| Alternator | 95 Ah |
| Voltage | 12 V V (deletedelete) |
Engine
| Emissions Certification | TIER 4 FINAL |
| Fuel | Diesel |
| Engine Oil Service Interval Hours | 500 |
| Number Of Cylinders | 4 |
| Engine Oil Service Interval | 500 hours |
| Engine Model | JCB ECOMAX TCAE-55 |
| Power | 74 hp (55.2 kw) |
| Cooling System | Liquid |
| Torque | 295.1 lb ft (400 Nm) |
| Power Measured @ | 2000 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Torque Measured @ | 1300 rpm |
| Bore | 4.1 in (103 mm) |
| Stroke | 5.2 in (132 mm) |
Capacities
| Hydraulic Oil Tank | 15.9 gal (60 L) |
| Fuel Tank | 23.3 gal (88 L) |
| Engine Oil | 3.2 gal (12 L) |
| Engine Coolant | 4.5 gal (17 L) |
Operational
| Operating Weight | 13029.4 lb (5910 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 18.1 mph (29 km/h) |
Transmission
| Shuttle (Forward-Reverse) | Power shuttle |
| Gear Type | Manual |
| Transmission Type | Syncroshuttle |
| Torque Converter | 2.20:1 |
