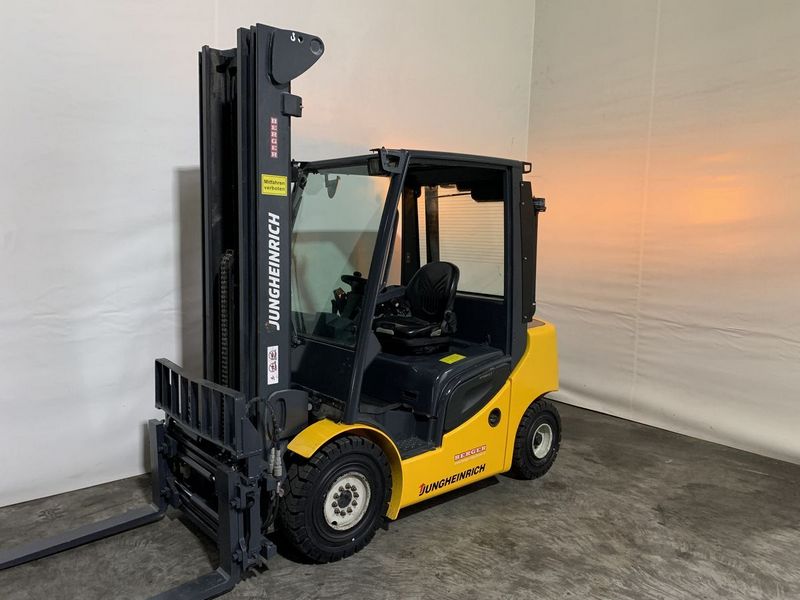

Jungheinrich DFG 425s
Browse All Jungheinrich or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.29 ft in (2525 mm) |
| Overall Width | 3.89 ft in (1185 mm) |
| Overall Height - Mast Lowered | 7.6 ft in (2315 mm) |
| Wheelbase | 5.53 ft in (1685 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 7.32 ft in (2230 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 7.47 ft in (2275 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Max Fork Spread | 44.1 in (1120 mm) |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5511.56 lb (2500 kg) |
| Lift Speed | 108.27 ft/min (33 m/min) |
Engine
| Engine Make | 2351 |
| Engine Model | 704.26 |
| Power | 53.7 hp (40 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 159.1 cu in (2.7 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 9193.3 lb (4170 kg) |
| Tire Type | superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.2 mph (19.6 km/h) |
