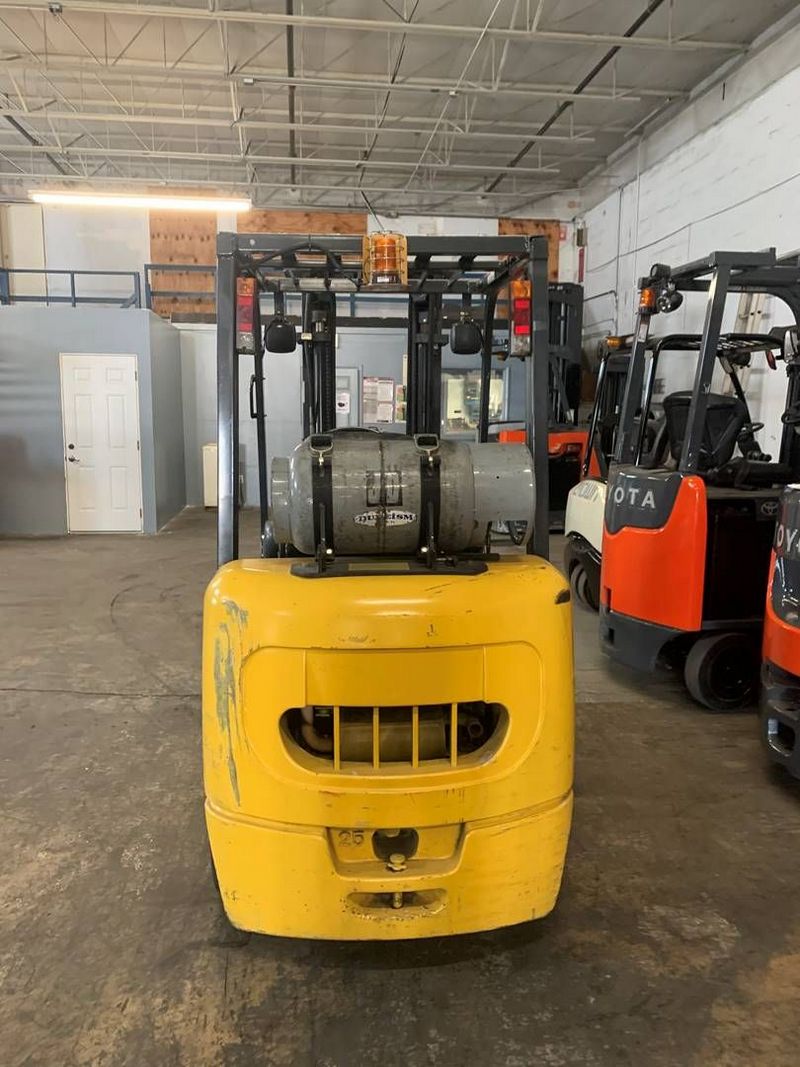

Komatsu FG25SHT-14
Contents:
Dimensions
| Length To Fork Face | 7.68 ft in (2340 mm) |
| Overall Width | 3.48 ft in (1060 mm) |
| Overall Height - Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.14 in (105 mm) |
| Height To Top Of Overhead Guard | 6.57 ft in (2000 mm) |
| Max Fork Height | 10.67 ft in (3250 mm) |
| Right Angle Stack | 7.9 ft in (2405 mm) |
| Turning Radius | 6.47 ft in (1970 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Number Of Mast Sections | 2 |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 120 ft/min (36.58 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 0 |
| Engine Model | K25 |
| Power | 65.7 hp (49 kw) |
| Torque | 145 lb ft (196.6 Nm) |
| Power Measured @ | 2900 rpm |
| Displacement | 152 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Gasoline |
Operational
| Operating Weight | 8180 lb (3710.4 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.3 mph (16.6 km/h) |
