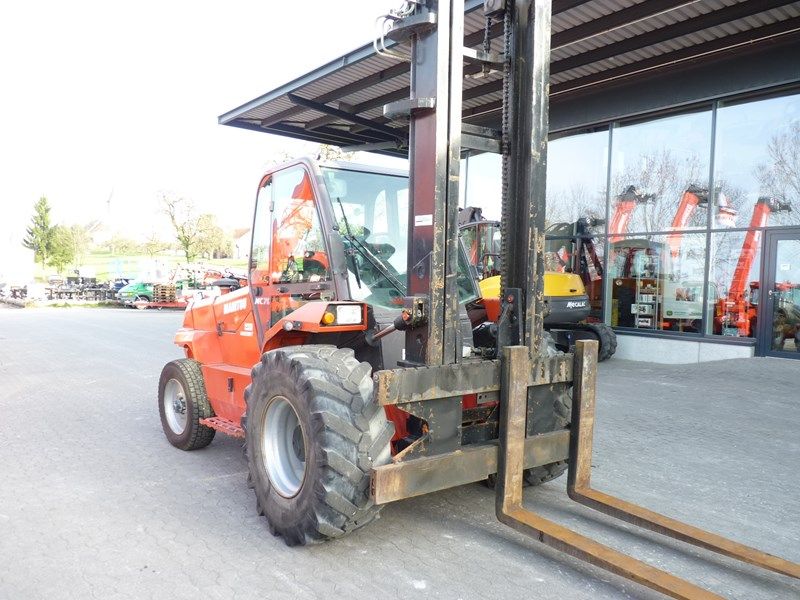

Manitou MC 70 Powershift
Contents:
Dimensions
| Length To Fork Face | 13.65 ft in (4160 mm) |
| Overall Width | 7.06 ft in (2150 mm) |
| Overall Height - Mast Lowered | 11.18 ft in (3405 mm) |
| Wheelbase | 8.18 ft in (2493 mm) |
| Ground Clearance | 15.16 in (385 mm) |
| Height To Top Of Overhead Guard | 8.01 ft in (2440 mm) |
| Max Fork Height | 13.13 ft in (4000 mm) |
| Turning Radius | 13.82 ft in (4210 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 15 degrees |
| Lift Speed | _ - (22.8 m/min) |
| Max Fork Spread | 68.9 in (1750 mm) |
| Lower Speed | _ - (22.2 m/min) |
| Load Center | 23.63 in (600 mm) |
| Number Of Mast Sections | 1 |
| Load Capacity | 15432.36 lb (7000 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104C-44 |
| Power | 82.5 hp (61.5 kw) |
| Torque | 222.8 lb ft (302 Nm) |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 21384.9 lb (9700 kg) |
| Tire Type | front 18R19.5 XF rear 9.5 R 19.5 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15 mph (24 km/h) |
