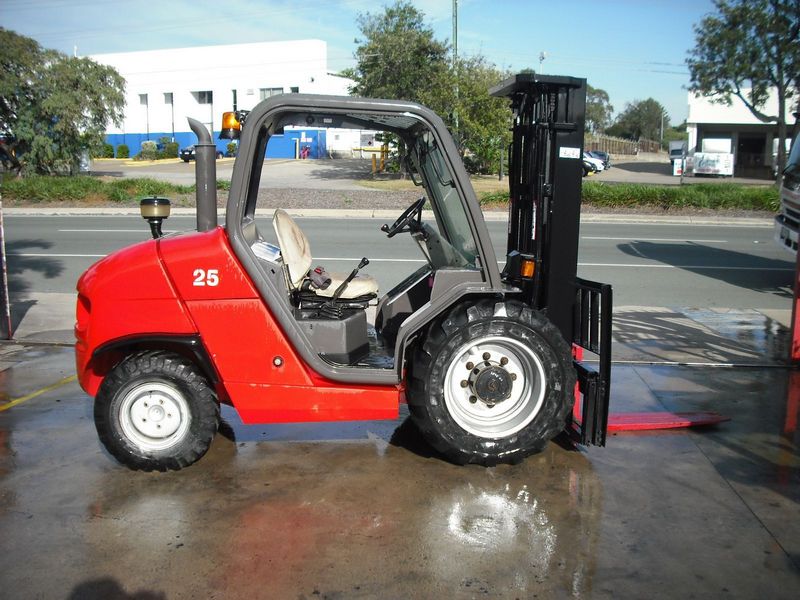

Manitou MH25 - 4T Buggie Evolution
Contents:
Dimensions
| Length To Fork Face | 9.67 ft in (2945 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Overall Height - Mast Lowered | 13.36 ft in (4070 mm) |
| Wheelbase | 5.91 ft in (1800 mm) |
| Ground Clearance | 10.63 in (270 mm) |
| Height To Top Of Overhead Guard | 6.53 ft in (1990 mm) |
| Turning Radius | 10.72 ft in (3265 mm) |
Mast
| Max Fork Spread | 49.61 in (1260 mm) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5511.56 lb (2500 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 404 C - 22T |
| Power | 60 hp (44.8 kw) |
| Torque | 140.2 lb ft (190 Nm) |
| Displacement | 135.3 cu in (2.3 L) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 9568.1 lb (4340 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.7 mph (14 km/h) |
