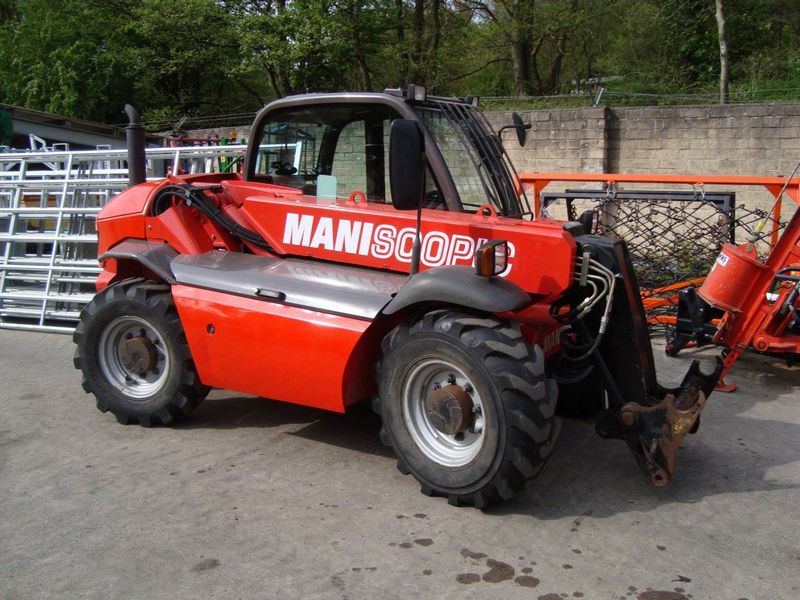

Manitou MLT 523 Turbo MU
Contents:
Dimensions
| Length To Fork Face | 17.75 ft in (5410.2 mm) |
| Overall Width | 5.92 ft in (1803.41 mm) |
| Overall Height - Mast Lowered | 7.59 ft in (2311.4 mm) |
| Wheelbase | 7.25 ft in (2209.81 mm) |
| Ground Clearance | 14 in (355.6 mm) |
| Height To Top Of Overhead Guard | 6.59 ft in (2006.6 mm) |
| Turning Radius | 10.17 ft in (3098.81 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1103-C33 |
| Power | 75 hp (56 kw) |
| Torque | 175 lb ft (237.3 Nm) |
| Displacement | 164 cu in (2.7 L) |
| Torque Measured @ | 1400 rpm |
| Fuel Type | diesel |
Operational
| Tire Type | 12.5/80x18 SGI 10PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 17 mph (27.4 km/h) |
