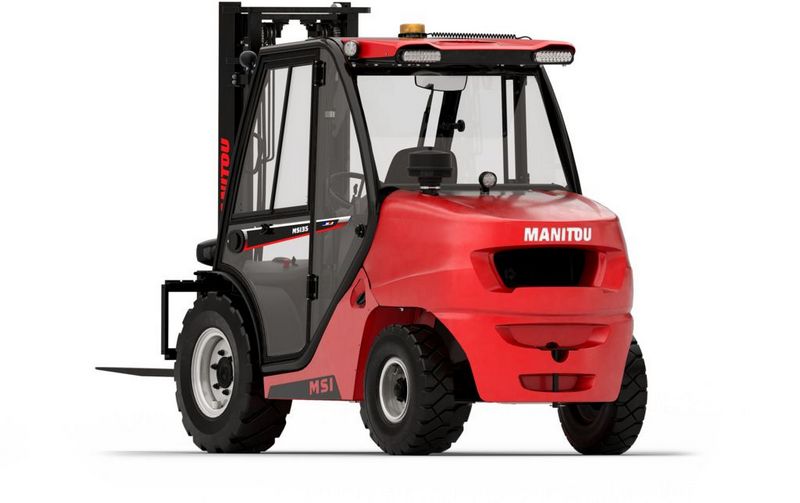

Manitou MSI 35
Contents:
Dimensions
| Length To Fork Face | 9.95 ft in (3030 mm) |
| Overall Width | 4.34 ft in (1320 mm) |
| Overall Height - Mast Lowered | 7.55 ft in (2300 mm) |
| Wheelbase | 5.91 ft in (1800 mm) |
| Ground Clearance | 10.24 in (260 mm) |
| Height To Top Of Overhead Guard | 6.91 ft in (2105 mm) |
| Turning Radius | 8.5 ft in (2590 mm) |
Mast
| Max Fork Spread | 49.61 in (1260 mm) |
| Load Capacity | 7716.18 lb (3500 kg) |
Engine
| Engine Model | 404 C 22T |
| Power | 60 hp (44.7 kw) |
| Torque | 140.2 lb ft (190 Nm) |
| Displacement | 135.3 cu in (2.3 L) |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 10979.1 lb (4980 kg) |
| Tire Type | Front - 275/70 R 22, 5 / Rear - 7.00 x 12 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20 km/h) |
