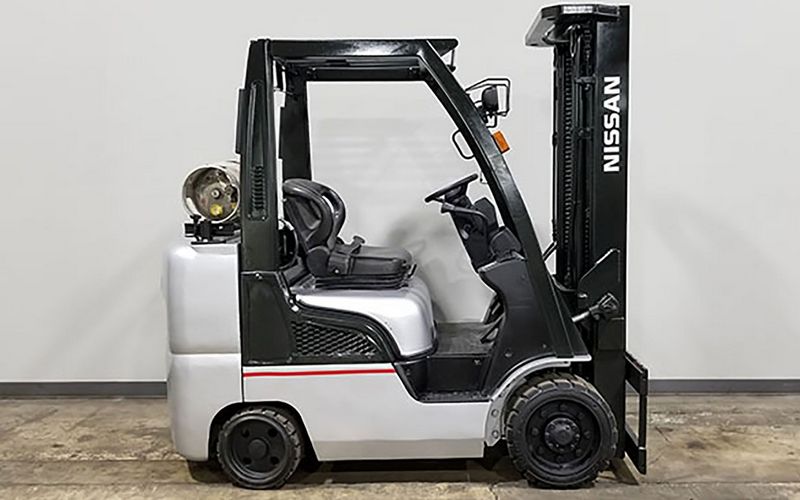

Nissan CF50
Contents:
Dimensions
| Length To Fork Face | 7.61 ft in (2319.02 mm) |
| Overall Width | 3.51 ft in (1069.34 mm) |
| Overall Height - Mast Lowered | 6.85 ft in (2085.34 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 3.15 in (80 mm) |
| Height To Top Of Overhead Guard | 6.85 ft in (2085 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Angle Of Departure | 30 degrees |
| Approach Angle | 26 degrees - (deletedelete) |
| Counterweight Clearance | 3.83 ft in (1165 mm) |
| Fork Length | 42.13 in (1070 mm) |
| Fork Thickness | 1.58 in (40 mm) |
| Fork Width | 3.94 in (100 mm) |
| Gradeability | 16 % |
| Overhang Front | 1.35 ft in (410 mm) |
| Overhang Rear | 1.68 ft in (510 mm) |
| Right Angle Stack | 7.81 ft in (2379.98 mm) |
| Turning Radius | 6.53 ft in (1988.82 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 118.12 ft/min (36 m/min) |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Center | 24 in (609.6 mm) |
Engine
| Engine Make | Nissan |
| Engine Model | k21 |
| Power | 55 hp (41.1 kw) |
| Torque | 111.4 lb ft (151 Nm) |
| Power Measured @ | 2700 rpm |
| Displacement | 126 cu in (2.1 L) |
| Torque Measured @ | 2000 rpm |
| Model Name | CF50 |
Operational
| Operating Weight | 7940 lb (3601.6 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17.1 km/h) |
| Drawbar Pull | 3638 lb (1650.2 kg) |
Transmission
| Number Of Forward / Reverse Speeds | 1/1 |
| Transmission Type | Automatic |
| Steering | Full Hydraulic |
Brakes
| Service Brake | Drum and Shoe |
| Parking Brake | Hand |
