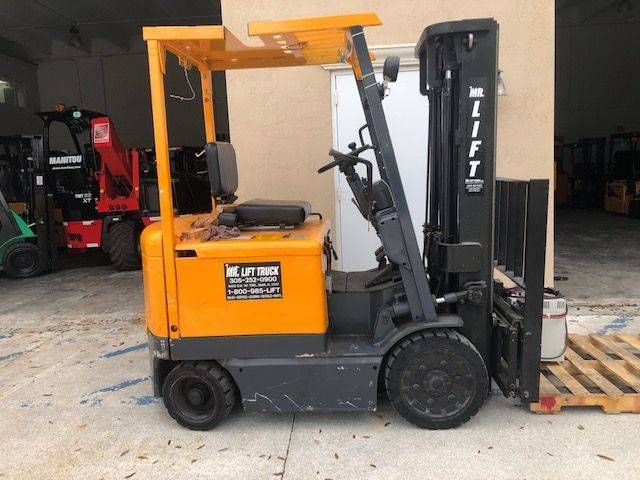

TCM FCB25A4
Contents:
Dimensions
| Overall Width | 3.46 ft in (1054.09 mm) |
| Overall Height - Mast Lowered | 6.93 ft in (2110.74 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 6.73 ft in (2049.79 mm) |
Mast
| Lift Speed | 93 ft/min (28.35 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
Engine
| Power | 35.6 hp (26.5 kw) |
| Fuel Type | Battery |
Operational
| Operating Weight | 6975 lb (3163.9 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10 mph (16.1 km/h) |
