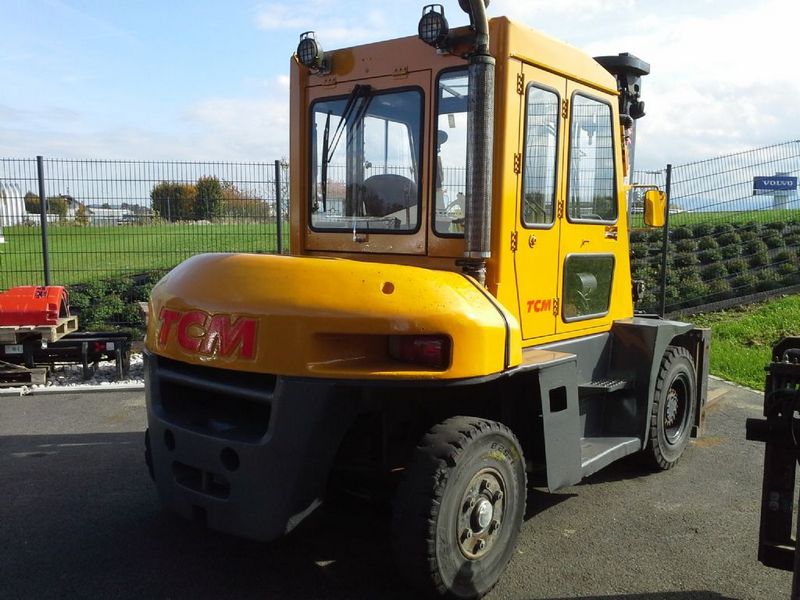

TCM FD 70-9
Contents:
Dimensions
| Overall Width | 6.55 ft in (1993.88 mm) |
| Overall Height - Mast Lowered | 8.2 ft in (2499.36 mm) |
| Max Fork Height | 9.84 ft in (2997.1 mm) |
| Turning Radius | 11.03 ft in (3360.42 mm) |
Mast
| Lift Speed | 102.4 ft/min (31.22 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 15500 lb (7030.69 kg) |
Engine
| Engine Model | S6K-E5T |
| Power | 110.5 hp (82.4 kw) |
| Displacement | 388.9 cu in (6.4 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 20680 lb (9380.3 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 17.4 mph (28.1 km/h) |
