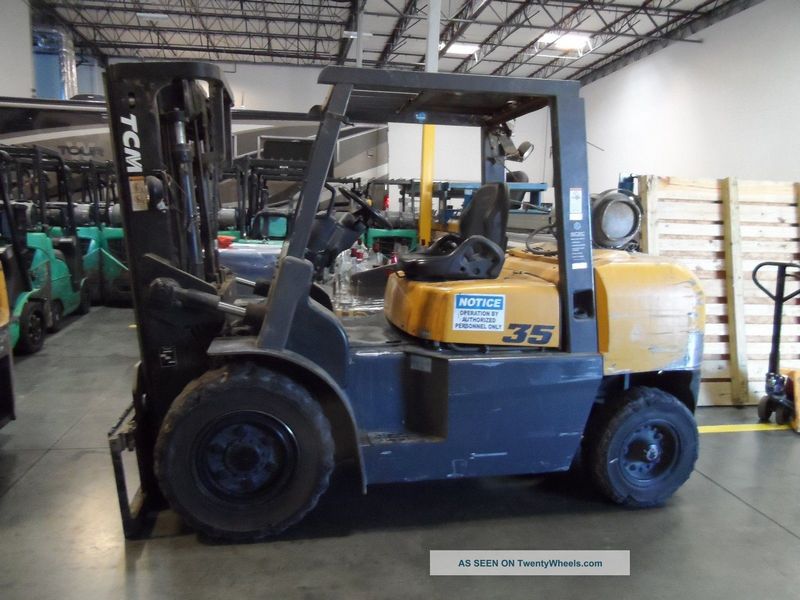

TCM FG35T2
Contents:
Dimensions
| Overall Width | 4.86 ft in (1480.81 mm) |
| Overall Height - Mast Lowered | 7.32 ft in (2230.14 mm) |
| Max Fork Height | 10.84 ft in (3301.9 mm) |
| Turning Radius | 8.96 ft in (2730.49 mm) |
Mast
| Lift Speed | 126 ft/min (38.41 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 8000 lb (3628.74 kg) |
Engine
| Engine Model | TB45 |
| Power | 93.9 hp (70.1 kw) |
| Displacement | 273.3 cu in (4.5 L) |
| Fuel Type | Gas and LP |
Operational
| Operating Weight | 13473 lb (6111.3 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.2 mph (26.1 km/h) |
