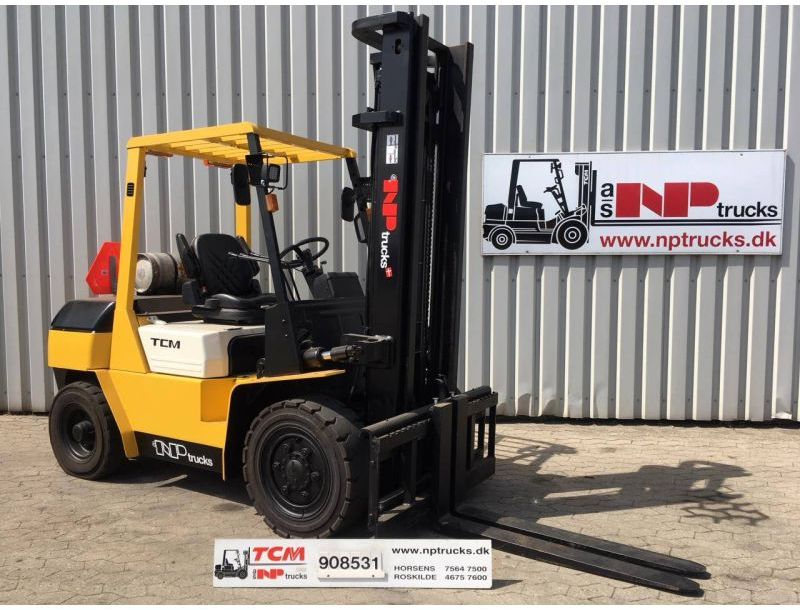

TCM FHG36N9
Contents:
Dimensions
| Length To Fork Face | 9.54 ft in (2905 mm) |
| Overall Width | 4.37 ft in (1330 mm) |
| Overall Height - Mast Lowered | 6.85 ft in (2085 mm) |
| Wheelbase | 5.91 ft in (1800 mm) |
| Ground Clearance | 5.71 in (145 mm) |
| Height To Top Of Overhead Guard | 6.93 ft in (2110 mm) |
| Max Fork Height | 14 ft in (4265 mm) |
| Right Angle Stack | 10.27 ft in (3130 mm) |
| Turning Radius | 8.54 ft in (2600 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Number Of Mast Sections | 1 |
| Lower Speed | 108.3 ft/min (33.01 m/min) |
| Max Fork Spread | 5.91 in (150 mm) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 7936.65 lb (3600 kg) |
| Lift Speed | 82.7 ft/min (25.21 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2311 |
| Engine Model | H25 |
| Power | 64 hp (47.8 kw) |
| Torque | 132.3 lb ft (179.3 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 151 cu in (2.5 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gasoline |
Operational
| Operating Weight | 12020 lb (5452.2 kg) |
| Tire Type | 250-15-16PR |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 15 mph (24 km/h) |
