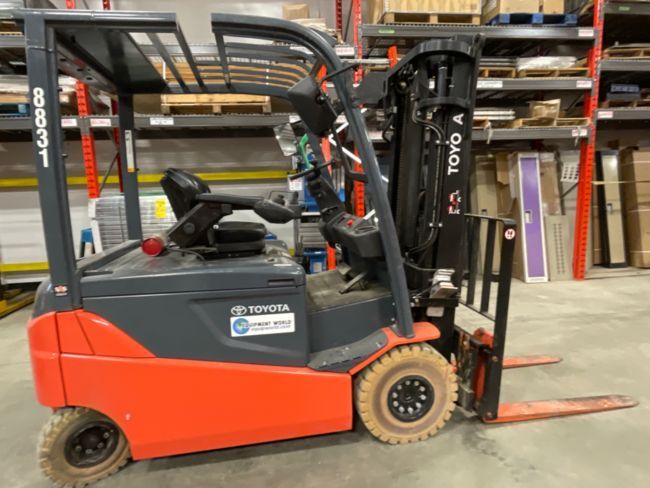

Toyota 05-8FBM25T
Contents:
Dimensions
| Length To Fork Face | 7.5 ft in (2284 mm) |
| Overall Width | 3.93 ft in (1195 mm) |
| Overall Height - Mast Lowered | 7.34 ft in (2235 mm) |
| Wheelbase | 5.17 ft in (1575 mm) |
| Ground Clearance | 3.75 in (95 mm) |
| Height To Top Of Overhead Guard | 7.27 ft in (2215 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Gradeability | 29 % |
| Right Angle Stack | 7.36 ft in (2243 mm) |
| Turning Radius | 6.58 ft in (2003 mm) |
Mast
| Mast Tip Forward | 4.5 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 90.56 ft/min (27.6 m/min) |
Electrical System
| Control Drive | Transistor Inverter |
| Control Load Handling | Transistor Inverter |
| Control Power Steering | Transistor Inverter |
| Motor Load Handling (Hydraulic) | 34.2 hp (25.6 kw) |
| Motor Drive | 26.8 hp (20 kw) |
| Battery Capacity | 560 Ah |
| Voltage | 80 V |
Engine
| Engine Make | TOYOTA |
Operational
| Operating Weight | 13210.1 lb (5992 kg) |
| Tire Type | Solid Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Drawbar Pull | 41887.9 lb (19000 kg) |
Transmission
| Max Speed - Reverse | 12.4 mph (20 km/h) |
| Max Speed - Forward | 11.8 mph (19 km/h) |
Tires
| Standard_Rear | 18 x 7 - 8 |
| Standard_Option_Front | 23 x 9 - 10 |
Hydraulic
| Main Pump Flow Standard | 10.6 gal/min (40 L/min) |
| Maximum Operating Pressure | 2321 psi (16002.8 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
