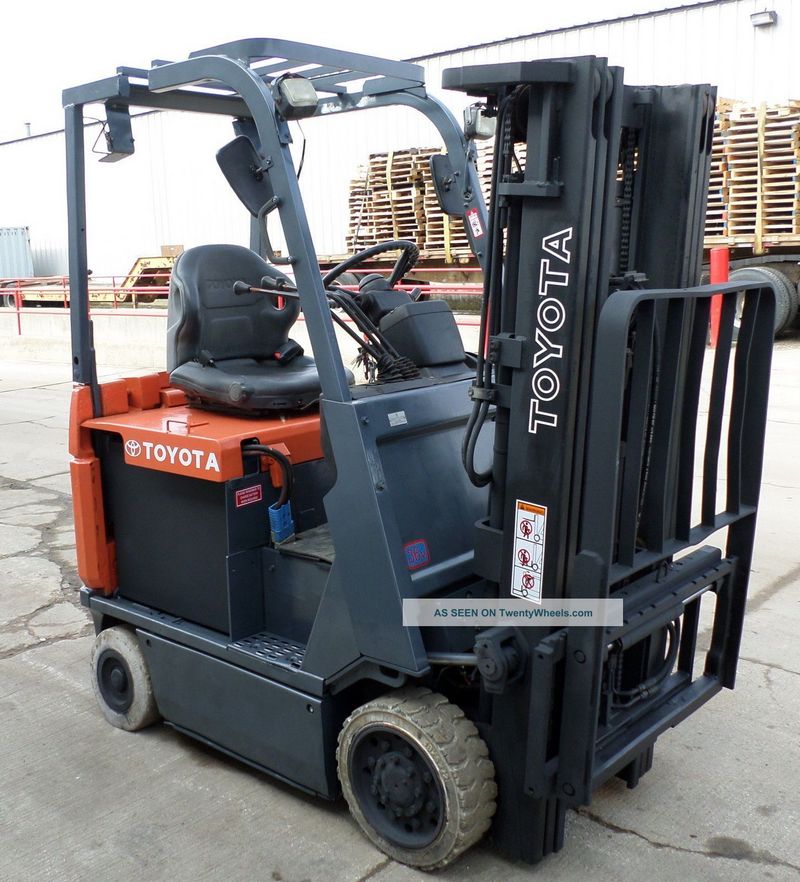

Toyota 7FBCU18
Contents:
Dimensions
| Length To Fork Face | 6.4 ft in (1950 mm) |
| Overall Width | 3.11 ft in (945 mm) |
| Overall Height - Mast Lowered | 14.95 ft in (4555 mm) |
| Wheelbase | 4.01 ft in (1220 mm) |
| Height To Top Of Overhead Guard | 7.21 ft in (2195 mm) |
| Max Fork Height | 10.95 ft in (3335 mm) |
| Free Lift | 5.71 in (145 mm) |
| Front Wheel Tread Width | 31.3 in (795 mm) |
| Gradeability | 20 % |
| Rear Wheel Tread Width - Max | 32.29 in (820 mm) |
| Right Angle Stack | 6.85 ft in (2085 mm) |
| Turning Radius | 5.53 ft in (1685 mm) |
Mast
| Lift Speed | 81 ft/min (24.69 m/min) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3500 lb (1587.58 kg) |
Electrical System
| Control Drive | Transistor Invertor |
| Control Power Steering | Electromagnetic Contactor |
| Battery Voltage | 48 V |
| Battery Capacity | 510 Ah |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 5214 lb (2365 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17.1 km/h) |
| Drawbar Pull | 2080 lb (943.5 kg) |
| Tire Size | Front - 18 x 6 x 12-1 / 8, Rear - 14 x 4-1 / 2x8 |
| Hydraulic System Relief Valve Pressure | 2280 psi (15720.1 kPa) |
