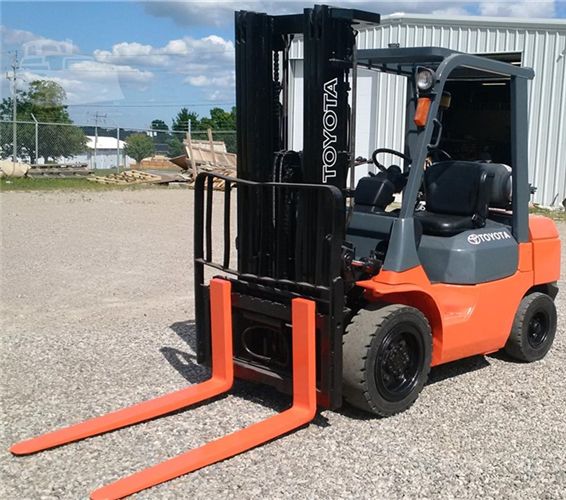

Toyota 7FDU15
Contents:
Dimensions
| Length To Fork Face | 7.37 ft in (2245.37 mm) |
| Overall Width | 3.52 ft in (1071.89 mm) |
| Overall Height - Mast Lowered | 6.83 ft in (2080.27 mm) |
| Right Angle Stack | 7.67 ft in (2336.82 mm) |
| Turning Radius | 6.34 ft in (1930.3 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 3000 lb (1360.78 kg) |
| Lift Speed | 128 ft/min (39.02 m/min) |
Engine
| Power | 54 hp (40.3 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
