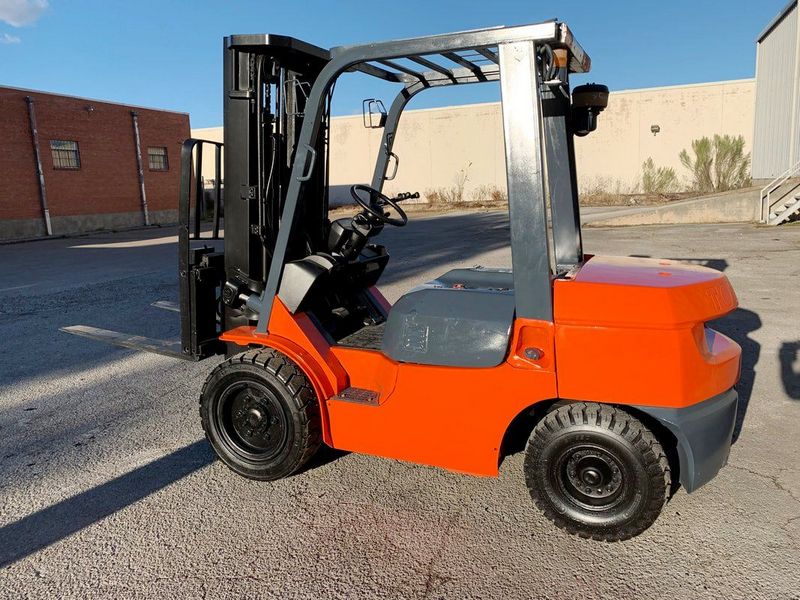

Toyota 7FDU30
Contents:
Dimensions
| Length To Fork Face | 9.01 ft in (2745.73 mm) |
| Overall Width | 4.07 ft in (1239.63 mm) |
| Overall Height - Mast Lowered | 7.13 ft in (2171.7 mm) |
| Right Angle Stack | 9.24 ft in (2814.32 mm) |
| Turning Radius | 7.71 ft in (2349.5 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 98 ft/min (29.88 m/min) |
Engine
| Power | 59 hp (44 kw) |
| Power Measured @ | 2600 rpm |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
