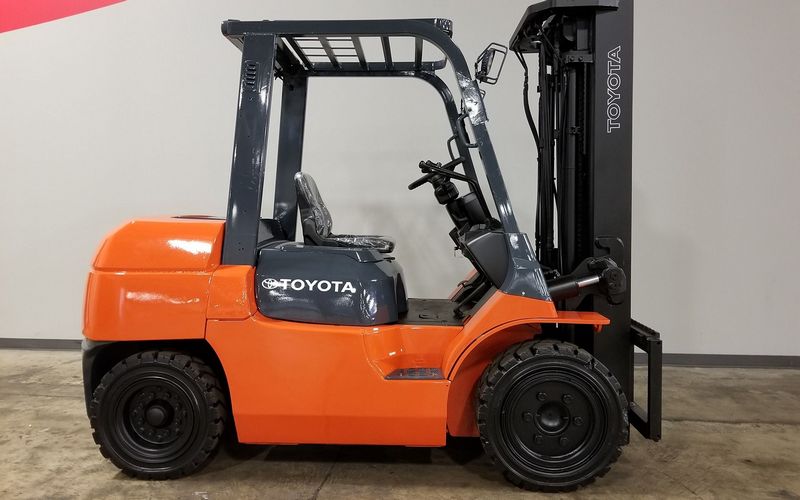

Toyota 7FDU35
Contents:
Dimensions
| Length To Fork Face | 9.6 ft in (2925 mm) |
| Overall Width | 4.43 ft in (1350 mm) |
| Wheelbase | 6.04 ft in (1840 mm) |
| Height To Top Of Overhead Guard | 7.19 ft in (2190 mm) |
| Right Angle Stack | 10.21 ft in (3111.4 mm) |
| Turning Radius | 8.49 ft in (2585 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 8000 lb (3628.74 kg) |
| Lift Speed | 101 ft/min (30.79 m/min) |
Engine
| Power | 84 hp (62.7 kw) |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.7 mph (22.1 km/h) |
