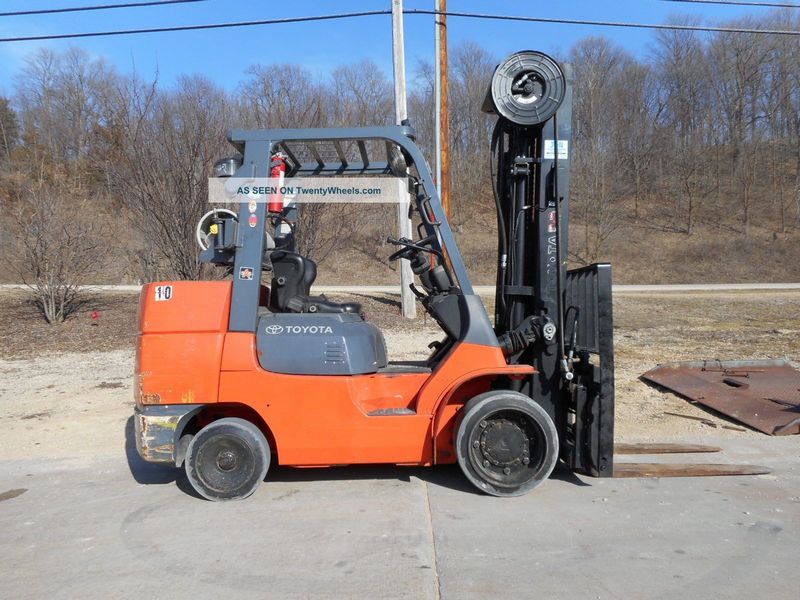

Toyota 7FGCU45
Contents:
Dimensions
| Length To Fork Face | 9 ft in (2743 mm) |
| Overall Width | 4.43 ft in (1348.5 mm) |
| Wheelbase | 5.13 ft in (1562 mm) |
| Height To Top Of Overhead Guard | 6.9 ft in (2103 mm) |
| Right Angle Stack | 9.43 ft in (2872.74 mm) |
| Turning Radius | 7.85 ft in (2390 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 10000 lb (4535.93 kg) |
| Lift Speed | 87.1 ft/min (26.55 m/min) |
Engine
| Engine Model | OHV V-6 |
| Power | 90 hp (67.2 kw) |
| Torque | 208.8 lb ft (283 Nm) |
| Power Measured @ | 2350 rpm |
| Displacement | 262.5 cu in (4.3 L) |
| Torque Measured @ | 1200 rpm |
| Fuel Type | gasoline LPG |
Operational
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
