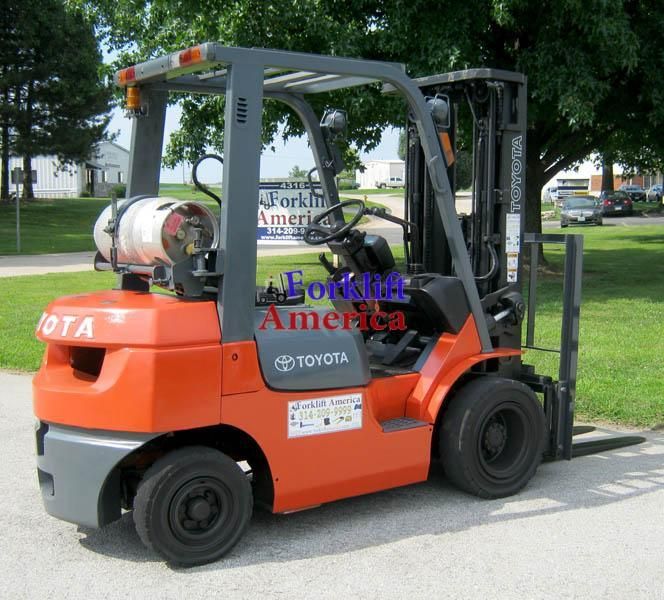

Toyota 7FGU20
Contents:
Dimensions
| Length To Fork Face | 8.35 ft in (2545.08 mm) |
| Overall Width | 3.78 ft in (1150.62 mm) |
| Overall Height - Mast Lowered | 6.93 ft in (2110.74 mm) |
| Right Angle Stack | 8.6 ft in (2621.29 mm) |
| Turning Radius | 7.06 ft in (2151.38 mm) |
Mast
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 118 ft/min (35.97 m/min) |
Engine
| Power | 53 hp (39.6 kw) |
| Power Measured @ | 2400 rpm |
Operational
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
