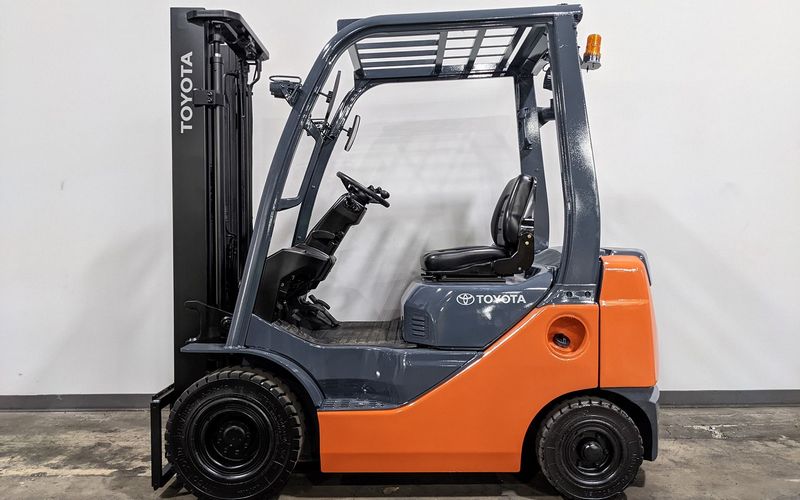

Toyota 8FDU18
Contents:
Dimensions
| Length To Fork Face | 7.57 ft in (2305 mm) |
| Overall Width | 3.52 ft in (1070 mm) |
| Overall Height - Mast Lowered | 7.04 ft in (2145 mm) |
| Wheelbase | 4.88 ft in (1485 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 6.83 ft in (2080 mm) |
| Max Fork Height | 10.95 ft in (3335 mm) |
| Free Lift | 5.71 in (145 mm) |
| Gradeability | 45 % |
| Right Angle Stack | 7.83 ft in (2385 mm) |
| Turning Radius | 6.5 ft in (1980 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 11 degrees |
| Load Center | 23.63 in (600 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Lift Speed | 128 ft/min (39.02 m/min) |
| Load Capacity | 3527.4 lb (1600 kg) |
| Max Fork Spread | 36 in (914.4 mm) |
Engine
| Battery | 12 V |
| Number Of Cylinders | 3 |
| Engine Make | TOYOTA |
| Engine Model | 1ZS |
| Power | 53 hp (39.6 kw) |
| Torque | 128 lb ft (173.6 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 110 cu in (1.9 L) |
| Torque Measured @ | 1800 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 6062.8 lb (2750 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.8 mph (19 km/h) |
| Drawbar Pull | 3924.3 lb (1780 kg) |
| Fuel Capacity | 12 gal (45.5 L) |
Tires
| Tires - Size_Front | 6.50-10-10PR (1) |
| Tires - Size_Rear | 5.00-8-8PR (1) |
Hydraulic
| Main Pump Flow Standard | 17 gal/min (64.4 L/min) |
| Maximum Operating Pressure | 2275 psi (15685.6 kPa) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
