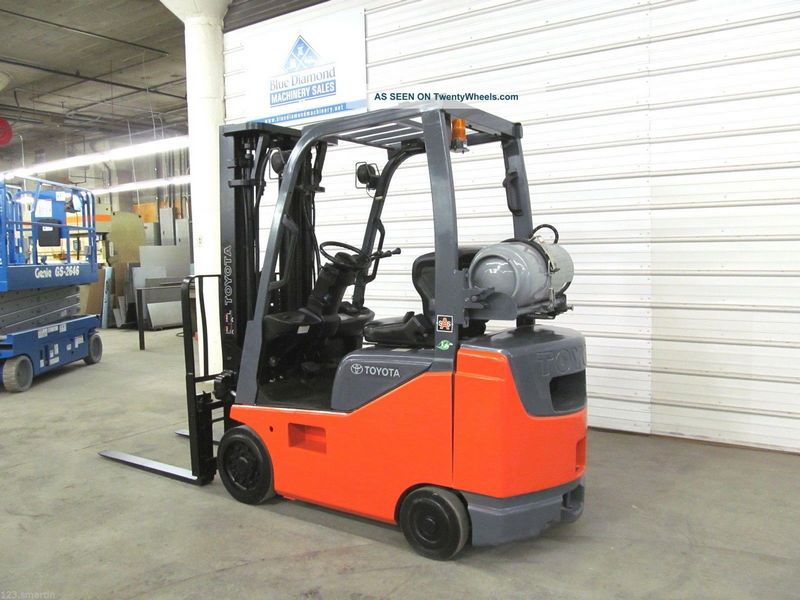

Toyota 8FGCU18
Contents:
Dimensions
| Length To Fork Face | 7.06 ft in (2150 mm) |
| Overall Width | 3.11 ft in (945 mm) |
| Wheelbase | 4.02 ft in (1225 mm) |
| Height To Top Of Overhead Guard | 6.68 ft in (2035 mm) |
| Max Fork Height | 10.95 ft in (3335 mm) |
| Free Lift | 5.71 in (145 mm) |
| Gradeability | 40 % |
| Turning Radius | 5.84 ft in (1780 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 3527.4 lb (1600 kg) |
| Lift Height-Smallest Mast | 83.08 in (2110 mm) |
| Lift Height- Largest Mast | 179.34 in (4555 mm) |
| Load Center | 23.63 in (600 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 4Y-ECS |
| Power | 48 hp (35.8 kw) |
| Torque | 118.1 lb ft (160 Nm) |
| Power Measured @ | 2250 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
Operational
| Operating Weight | 6415.5 lb (2910 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.9 mph (17.6 km/h) |
| Fuel Capacity | 7.2 gal (27 L) |
| Hydraulic System Fluid Capacity | 16 gal (60.6 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Performance
| Drawbar Pull Max -Full Load | 3747.9 lb (1700 kg) |
| Drawbar Pull Max -No Load | 1433.1 lb (650 kg) |
Transmission
| Type - Tts870 | Powershift |
| Number Of Forward / Reverse Speeds | 1 / 1 |
Tires
| Tires - Size_Front | 18 x 6 x 12-1/8 |
| Tires - Size_Rear | 14 x 4-1/2 x 8 |
| Number Of Tires - Front | 2 |
| Number Of Tires - Rear | 2 |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Mechanical |
