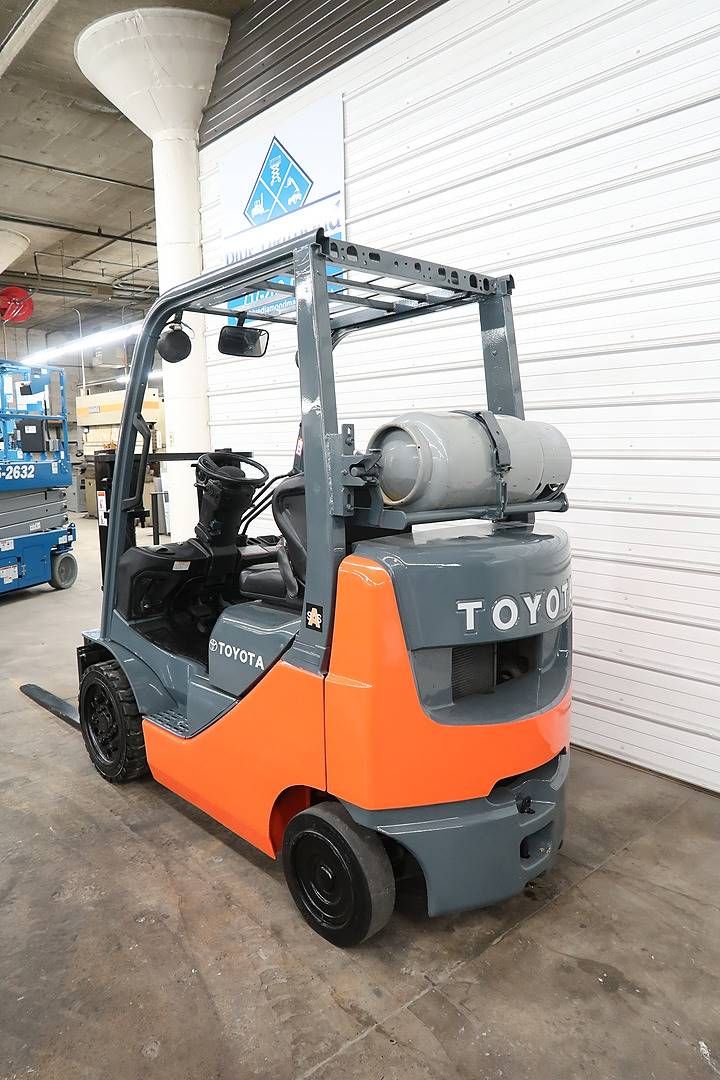

Toyota 8FGCU20
Contents:
Dimensions
| Length To Fork Face | 7.6 ft in (2315 mm) |
| Overall Width | 3.5 ft in (1065 mm) |
| Overall Height - Mast Lowered | 6.94 ft in (2115 mm) |
| Wheelbase | 4.88 ft in (1485 mm) |
| Height To Top Of Overhead Guard | 6.73 ft in (2050 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Fork Spread Max | 3.02 ft in (920 mm) |
| Fork Spread Min-Outer Edge To Edge | 9.85 in (250 mm) |
| Free Lift | 5.91 in (150 mm) |
| Gradeability | 36 % |
| Turning Radius | 6.3 ft in (1920 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
Tyres
| Standard_Front | 21 x 7 x 15 |
| Standard_Rear | 16 x 5 x 10-1/2 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | TOYOTA |
| Engine Model | 4Y-ECS |
| Power | 51 hp (38.1 kw) |
| Torque | 118.1 lb ft (160 Nm) |
| Power Measured @ | 2250 rpm |
| Displacement | 136 cu in (2.3 L) |
| Torque Measured @ | 2100 rpm |
Operational
| Operating Weight | 7143 lb (3240 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17.1 km/h) |
| Fuel Capacity | 11.9 gal (45 L) |
| Hydraulic System Fluid Capacity | 20 gal (75.8 L) |
| Hydraulic System Relief Valve Pressure | 2275 psi (15685.6 kPa) |
Performance
| Drawbar Pull Max -Full Load | 40785.6 lb (18500 kg) |
| Drawbar Pull Max -No Load | 18298.4 lb (8300 kg) |
Brakes
| Service Brake | Hydraulic |
| Parking Brake | Foot |
