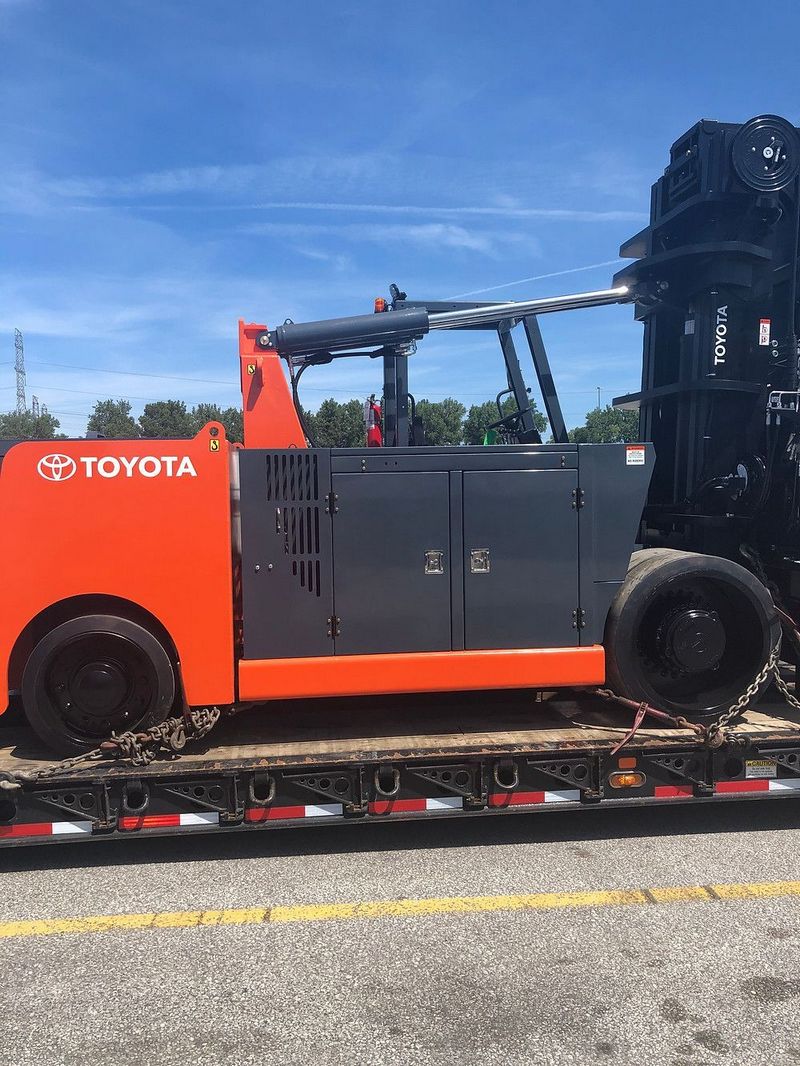

Toyota THDA60/80
Contents:
Dimensions
| Length To Fork Face | 20.1 ft in (6124.7 mm) |
| Overall Width | 7 ft in (2133.6 mm) |
| Overall Height - Mast Lowered | 9.84 ft in (2997.2 mm) |
| Wheelbase | 14 ft in (4267 mm) |
| Ground Clearance | 3.75 in (95.2 mm) |
| Height To Top Of Overhead Guard | 8.18 ft in (2490.7 mm) |
| Max Fork Height | 8.92 ft in (2717.8 mm) |
| Free Lift | 48.5 in (1231.91 mm) |
| Right Angle Stack | 21.69 ft in (6610.6 mm) |
| Turning Radius | 18.58 ft in (5661.1 mm) |
Mast
| Mast Tip Forward | 10 degrees |
| Mast Tip Rear | 7 degrees |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 79999.14 lb (36287 kg) |
| Max Fork Spread | 75.5 in (1917.7 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | PSI 4.3L |
| Power | 110 hp (82.1 kw) |
| Torque | 230 lb ft (311.9 Nm) |
| Power Measured @ | 2400 rpm |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LP - Gas |
Operational
| Operating Weight | 83010.7 lb (37653 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
Transmission
| Travelspeeds(Frwd)Speed Range | 2 |
| Travelspeeds(Backwrd)Speed Range | 2 |
| Transmission Type | Hydrostatic |
Tires
| Standard_Rear | 28 X 12 X 22 |
| Standard_Option_Front | 36 X 12 X 30 |
Brakes
| Service Brake | Hydrostatic |
| Parking Brake | Mechanical |
