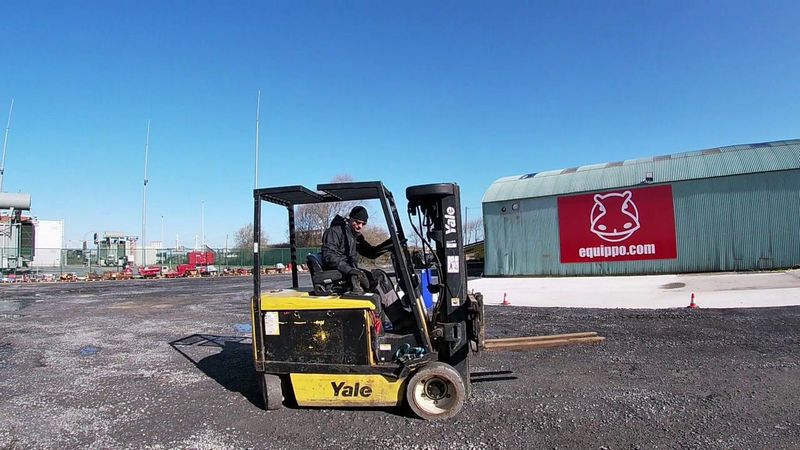

Yale ERC 30 AGF (LWB)
Contents:
Dimensions
| Length To Fork Face | 7.57 ft in (2305 mm) |
| Overall Width | 3.63 ft in (1105 mm) |
| Overall Height - Mast Lowered | 7.01 ft in (2135 mm) |
| Wheelbase | 5.09 ft in (1550 mm) |
| Ground Clearance | 3.35 in (85 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2185 mm) |
| Max Fork Height | 10.37 ft in (3160 mm) |
| Turning Radius | 6.75 ft in (2055 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 110.24 ft/min (33.6 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 63 ft/min (19.2 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 10306.7 lb (4675 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.1 mph (14.5 km/h) |
