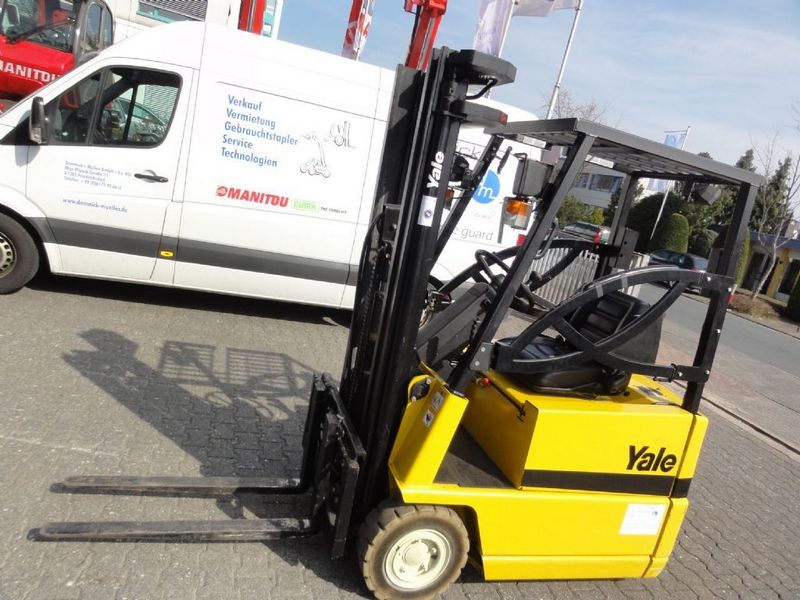

Yale ERP 12 RCF
Contents:
Dimensions
| Length To Fork Face | 5.81 ft in (1770 mm) |
| Overall Width | 3.45 ft in (1050 mm) |
| Overall Height - Mast Lowered | 6.87 ft in (2091.5 mm) |
| Wheelbase | 3.71 ft in (1130 mm) |
| Ground Clearance | 3.47 in (88 mm) |
| Height To Top Of Overhead Guard | 12.48 ft in (3801 mm) |
| Max Fork Height | 10.7 ft in (3260 mm) |
| Turning Radius | 4.76 ft in (1450 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 2755.78 lb (1250 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 51.19 ft/min (15.6 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 6514.7 lb (2955 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 6.3 mph (10 km/h) |
