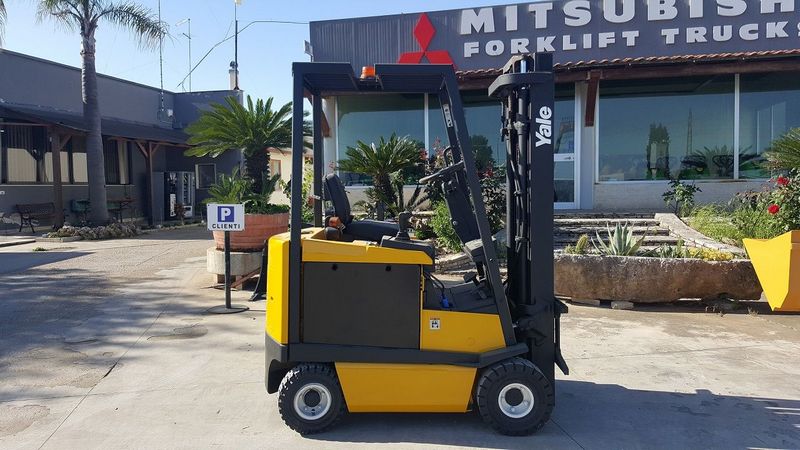

Yale ERP 18 AAF
Contents:
Dimensions
| Length To Fork Face | 6.33 ft in (1929 mm) |
| Overall Width | 3.53 ft in (1075 mm) |
| Overall Height - Mast Lowered | 6.99 ft in (2130 mm) |
| Wheelbase | 4.01 ft in (1220 mm) |
| Ground Clearance | 3.43 in (87 mm) |
| Height To Top Of Overhead Guard | 7.24 ft in (2205 mm) |
| Max Fork Height | 10.8 ft in (3290 mm) |
| Turning Radius | 5.44 ft in (1657 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Capacity | 3968.33 lb (1800 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 92.52 ft/min (28.2 m/min) |
Engine
| Fuel Type | Electric |
Operational
| Operating Weight | 7716.2 lb (3500 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.7 mph (14 km/h) |
