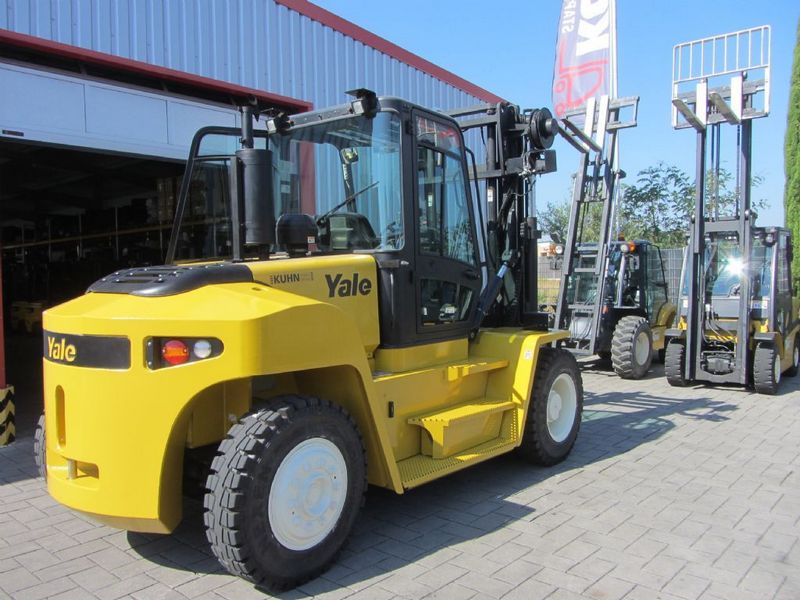

Yale GDP 120 DB
Contents:
Dimensions
| Length To Fork Face | 14.79 ft in (4505 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height - Mast Lowered | 14.62 ft in (4455 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Ground Clearance | 11.03 in (280 mm) |
| Height To Top Of Overhead Guard | 9.96 ft in (3033 mm) |
| Max Fork Height | 17.72 ft in (5400 mm) |
| Turning Radius | 13.39 ft in (4080 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 12 degrees |
| Lower Speed | 96.46 ft/min (29.4 m/min) |
| Load Capacity | 26455.48 lb (12000 kg) |
| Load Center | 23.63 in (600 mm) |
| Lift Speed | 66.93 ft/min (20.4 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB30 |
| Power | 155.6 hp (116 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 34804.4 lb (15787 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 16.8 mph (27 km/h) |
