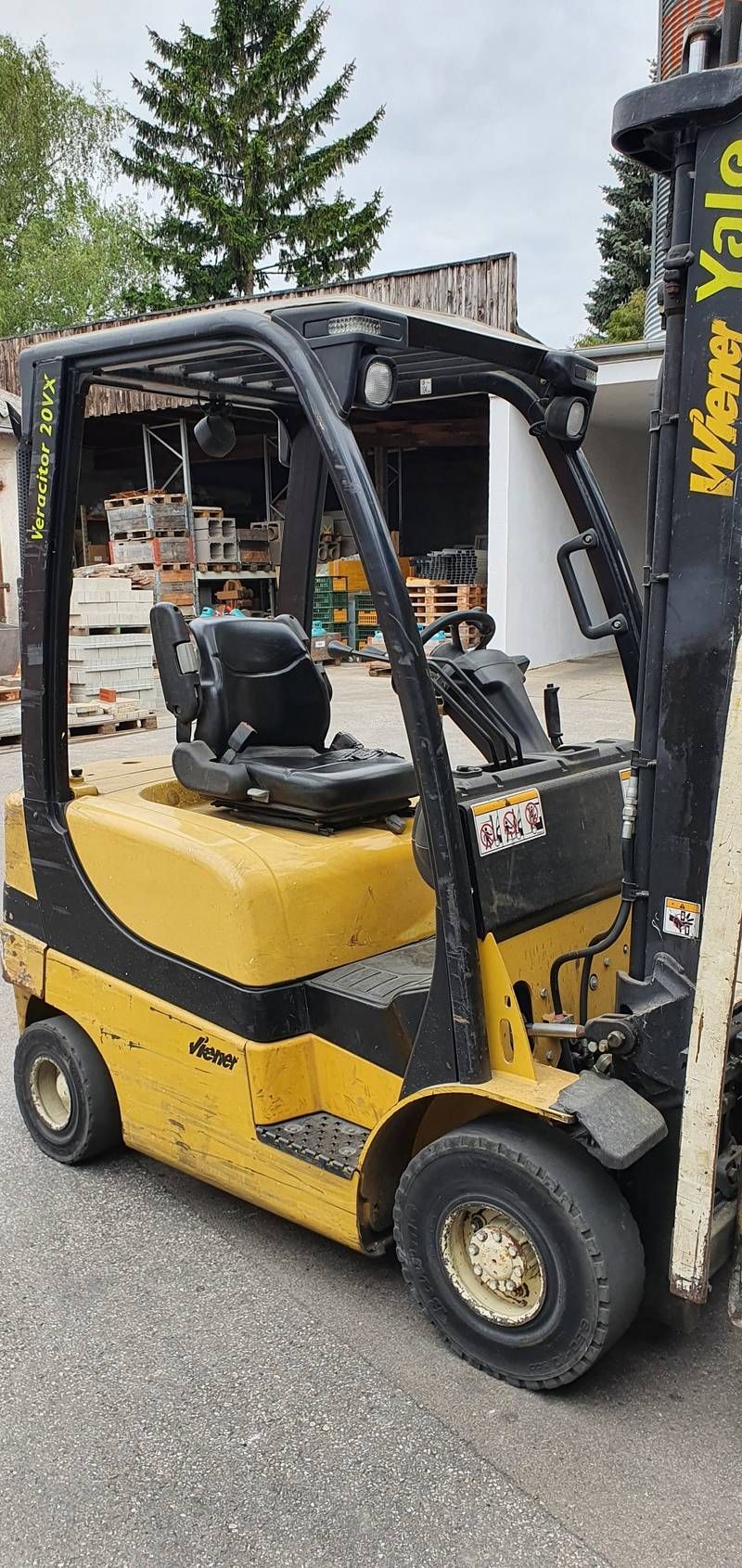

Yale GDP 20 SVX
Contents:
Dimensions
| Length To Fork Face | 7.45 ft in (2268 mm) |
| Overall Width | 3.51 ft in (1068 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 4.55 ft in (1385 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 7.06 ft in (2149 mm) |
| Max Fork Height | 10.8 ft in (3290 mm) |
| Turning Radius | 6.52 ft in (1985 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 122.05 ft/min (37.2 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNE92 |
| Power | 39.1 hp (29.1 kw) |
| Torque | 107.7 lb ft (146 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 162.3 cu in (2.7 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 8584.9 lb (3894 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.8 mph (20.5 km/h) |
