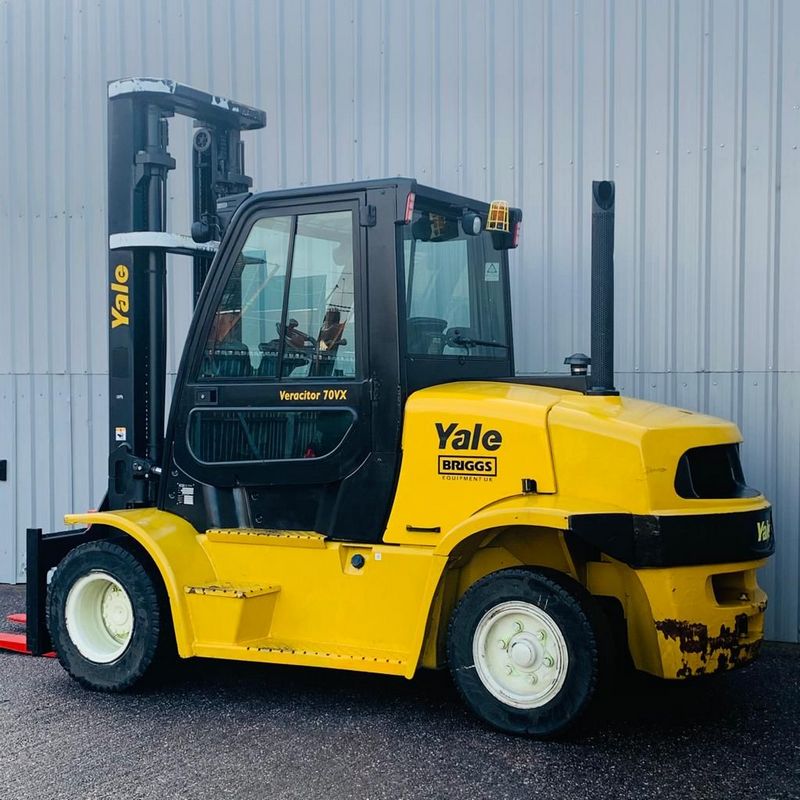

Yale GDP 70 VX
Contents:
Dimensions
| Length To Fork Face | 11.97 ft in (3648 mm) |
| Overall Width | 6.84 ft in (2082 mm) |
| Overall Height - Mast Lowered | 8.99 ft in (2740 mm) |
| Wheelbase | 7.34 ft in (2235 mm) |
| Ground Clearance | 5.75 in (146 mm) |
| Height To Top Of Overhead Guard | 8.31 ft in (2531 mm) |
| Max Fork Height | 10.96 ft in (3340 mm) |
| Turning Radius | 11.12 ft in (3388 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 110.24 ft/min (33.6 m/min) |
| Load Capacity | 15432.36 lb (7000 kg) |
| Load Center | 23.63 in (600 mm) |
| Lift Speed | 96.46 ft/min (29.4 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Power | 77.8 hp (58 kw) |
| Torque | 225 lb ft (305 Nm) |
| Power Measured @ | 2050 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Torque Measured @ | 1300 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 21252.6 lb (9640 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.2 mph (21.1 km/h) |
