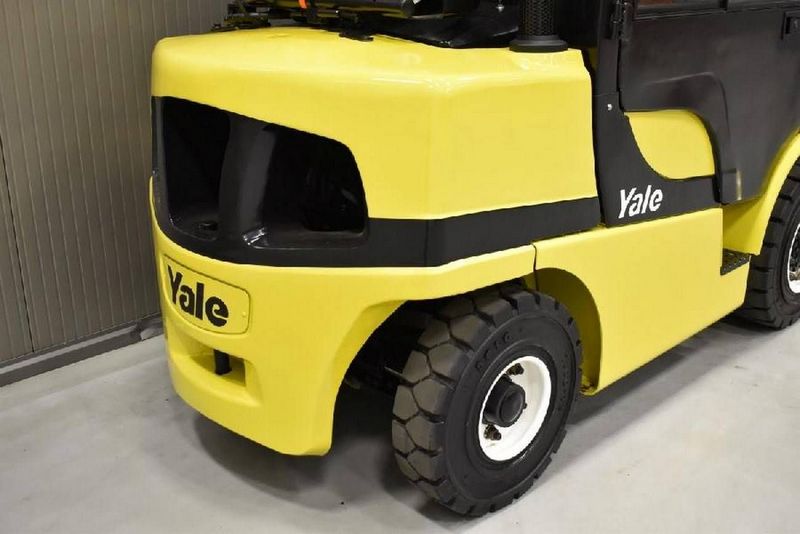

Yale GLP 40 VX5
Contents:
Dimensions
| Length To Fork Face | 9.67 ft in (2945 mm) |
| Overall Width | 4.6 ft in (1402 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 5.95 in (151 mm) |
| Height To Top Of Overhead Guard | 7.41 ft in (2258 mm) |
| Max Fork Height | 9.85 ft in (3000 mm) |
| Turning Radius | 8.44 ft in (2570 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 8818.5 lb (4000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 120.08 ft/min (36.6 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Power | 103.3 hp (77 kw) |
| Torque | 225 lb ft (305 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262.5 cu in (4.3 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 13300.5 lb (6033 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.7 mph (18.7 km/h) |
