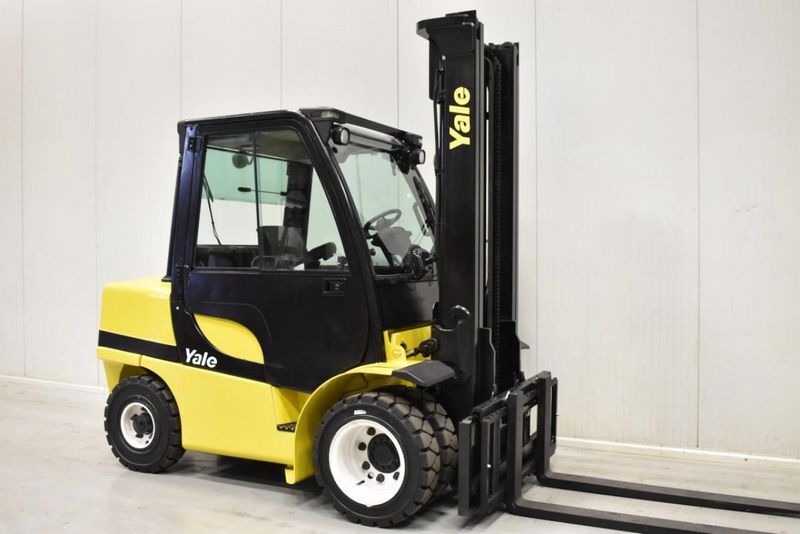

Yale GLP 45 SVX5
Contents:
Dimensions
| Length To Fork Face | 9.84 ft in (2997 mm) |
| Overall Width | 4.6 ft in (1402 mm) |
| Overall Height - Mast Lowered | 7.27 ft in (2215 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 7.64 in (194 mm) |
| Height To Top Of Overhead Guard | 7.41 ft in (2258 mm) |
| Max Fork Height | 8.99 ft in (2740 mm) |
| Turning Radius | 8.6 ft in (2619 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Capacity | 9920.81 lb (4500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 110.24 ft/min (33.6 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Power | 103.3 hp (77 kw) |
| Torque | 225 lb ft (305 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262.5 cu in (4.3 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 14039.1 lb (6368 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.7 mph (18.7 km/h) |
