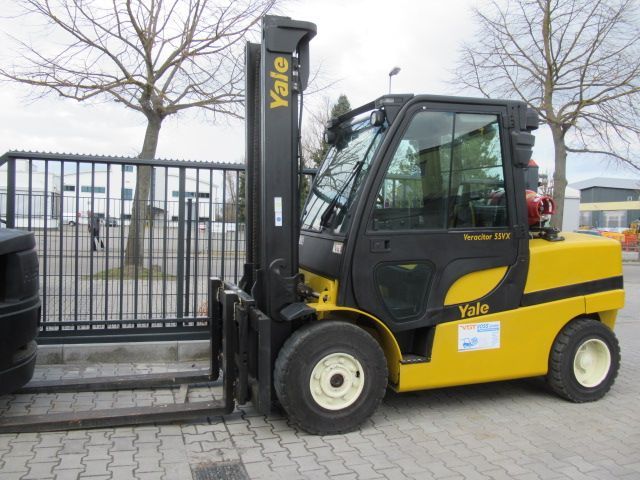

Yale GLP 55 VX
Contents:
Dimensions
| Length To Fork Face | 10.96 ft in (3340 mm) |
| Overall Width | 4.76 ft in (1450 mm) |
| Overall Height - Mast Lowered | 7.27 ft in (2215 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Ground Clearance | 7.64 in (194 mm) |
| Height To Top Of Overhead Guard | 7.55 ft in (2300 mm) |
| Max Fork Height | 8.99 ft in (2740 mm) |
| Turning Radius | 9.57 ft in (2915 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 100.4 ft/min (30.6 m/min) |
| Load Capacity | 12125.43 lb (5500 kg) |
| Load Center | 23.63 in (600 mm) |
| Lift Speed | 110.24 ft/min (33.6 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Power | 103.3 hp (77 kw) |
| Torque | 225 lb ft (305 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262.5 cu in (4.3 L) |
| Torque Measured @ | 2400 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 16598.7 lb (7529 kg) |
| Tire Type | Supercushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14.2 mph (22.7 km/h) |
