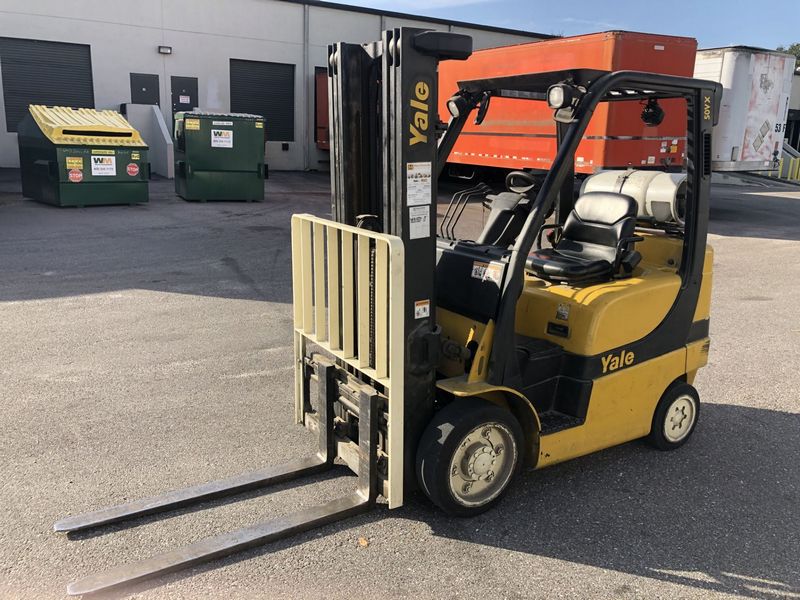

Yale HLF18-5
Contents:
Dimensions
| Length To Fork Face | 7.22 ft in (2200 mm) |
| Overall Width | 3.58 ft in (1090 mm) |
| Overall Height - Mast Lowered | 7.08 ft in (2155 mm) |
| Wheelbase | 4.47 ft in (1360 mm) |
| Ground Clearance | 5.71 in (145 mm) |
| Height To Top Of Overhead Guard | 6.93 ft in (2110 mm) |
| Max Fork Height | 14.22 ft in (4332 mm) |
| Turning Radius | 6.47 ft in (1970 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 88.6 ft/min (27.01 m/min) |
| Load Capacity | 3500 lb (1587.58 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 137.81 ft/min (42.01 m/min) |
Engine
| Engine Make | 2251 |
| Engine Model | 4G63-32HL |
| Power | 38.5 hp (28.7 kw) |
| Torque | 99 lb ft (134.3 Nm) |
| Power Measured @ | 2300 rpm |
| Displacement | 122 cu in (2 L) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 6497 lb (2947 kg) |
| Max Speed | 12.8 mph (20.6 km/h) |
