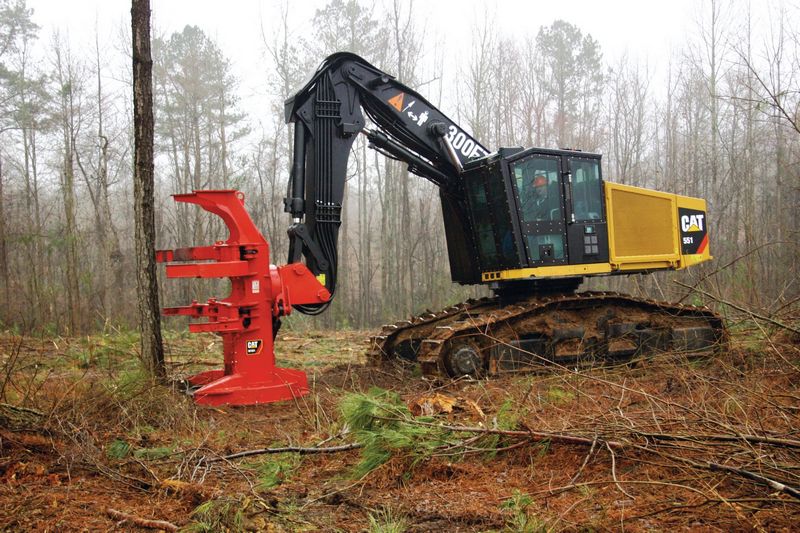

Caterpillar 551
Browse All Caterpillar or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 37.08 ft in (11300 mm) |
| Lift Capacity At Max Reach | 11023.12 lb (5000 kg) |
Dimensions
| Shipping Length - Non Tilt | 44.67 ft in (13614 mm) |
| Overall Width | 10.92 ft in (3327 mm) |
| Height To Top Of Cab | 12.01 ft in (3658 mm) |
Undercarriage
| Track Length | 15.75 ft in (4800.61 mm) |
| Track Gauge | 8.51 ft in (2591 mm) |
| Shoe Size | 28 in (711 mm) |
| Track Pitch | 8.5 in (215.9 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C9 ACERT |
| Net Power | 282 hp (210.3 kw) |
| Gross Power | 305 hp (227.5 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 537.1 cu in (8.8 L) |
Operational
| Operating Weight | 69174.5 lb (31377 kg) |
| Fuel Capacity | 312 gal (1181 L) |
| Hydraulic System Fluid Capacity | 97.8 gal (370 L) |
| Engine Oil Capacity | 10.4 gal (39 L) |
| Cooling System Fluid Capacity | 16.2 gal (61 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 amps |
