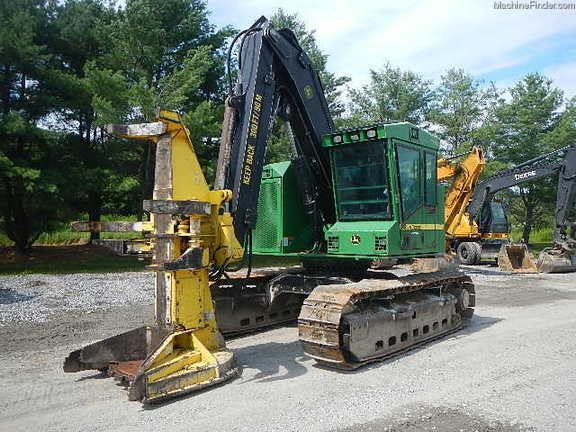

John Deere 753G
Browse All John Deere or Harvester Models
Contents:
Boom
| Max Reach W/ Head | 32.52 ft in (9910 mm) |
Dimensions
| Overall Width | 10.34 ft in (3150 mm) |
| Height To Top Of Cab | 11.32 ft in (3450 mm) |
Undercarriage
| Track Length | 14.51 ft in (4420 mm) |
| Ground Clearance | 2.27 ft in (690 mm) |
| Track Gauge | 8.34 ft in (2540 mm) |
| Shoe Size | 24.02 in (610 mm) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 7.11 psi (49 kPa) |
| Track Pitch | 8 in (203 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Gross Power | 241.4 hp (180 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 494.3 cu in (8.1 L) |
| Max Torque | 907.3 lb ft (1230 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 50823.2 lb (23053 kg) |
| Fuel Capacity | 154.3 gal (584 L) |
| Hydraulic System Fluid Capacity | 52.1 gal (197 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Cooling System Fluid Capacity | 10.2 gal (38.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 2.5 mph (4 km/h) |
