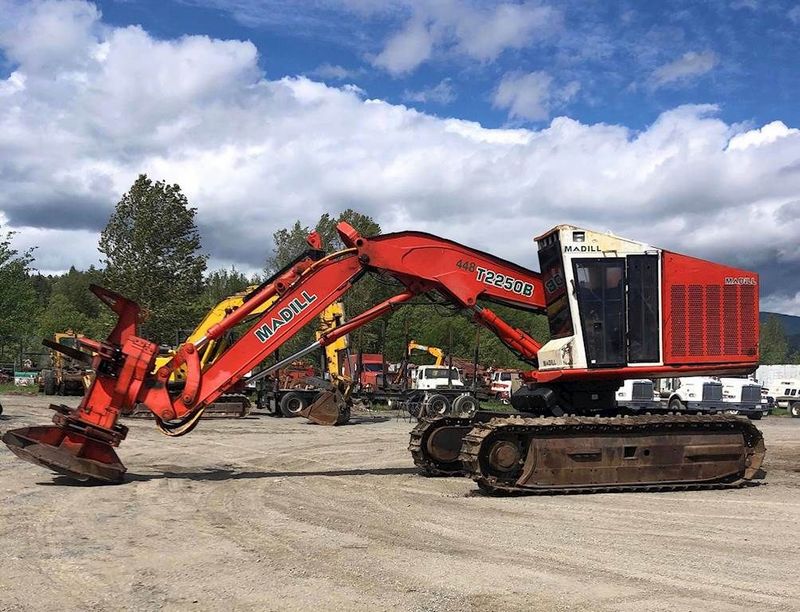

Madill HT2250B
Contents:
Boom
| Max Reach W/ Head | 28.25 ft in (8610.6 mm) |
Dimensions
| Overall Width | 11.33 ft in (3453.39 mm) |
| Height To Top Of Cab | 12.83 ft in (3910.59 mm) |
| Forward Tilt | 27 degrees |
Undercarriage
| Track Length | 15.67 ft in (4776.22 mm) |
| Ground Clearance | 2.42 ft in (736.62 mm) |
| Shoe Size | 28 in (711.2 mm) |
| Ground Pressure | 9.81 psi (67.57 kPa) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Engine Make | 2347 |
| Engine Model | QSL 9 Litre |
| Gross Power | 305 hp (227.5 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight | 80500 lb (36514.2 kg) |
| Fuel Capacity | 250 gal (946.4 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed | 2.8 mph (4.6 km/h) |
