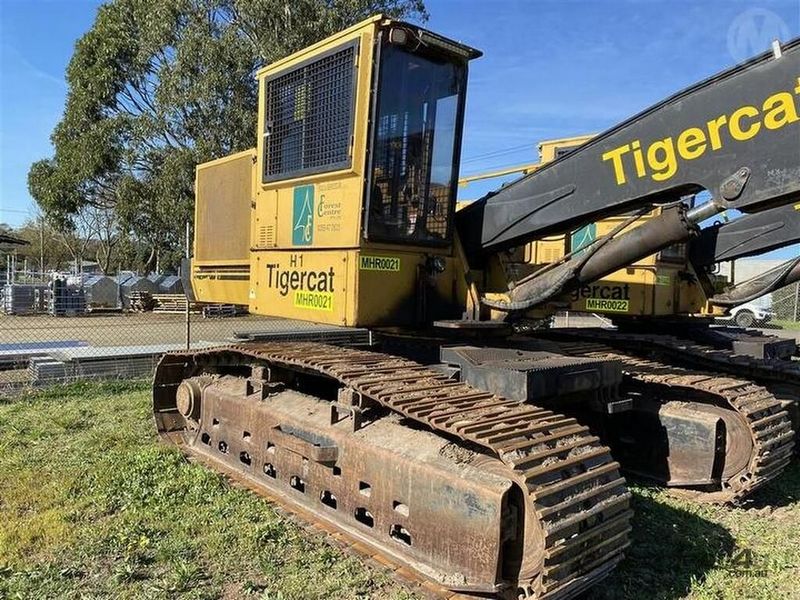

Tigercat H250B
Contents:
Boom
| Max Reach W/ Head | 32 ft in (9753.6 mm) |
Dimensions
| Overall Width | 11.26 ft in (3430 mm) |
| Height To Top Of Cab | 11.83 ft in (3605.79 mm) |
Undercarriage
| Ground Clearance | 2.5 ft in (760 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 Tier III |
| Gross Power | 205 hp (152.9 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight | 56100 lb (25446.6 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
