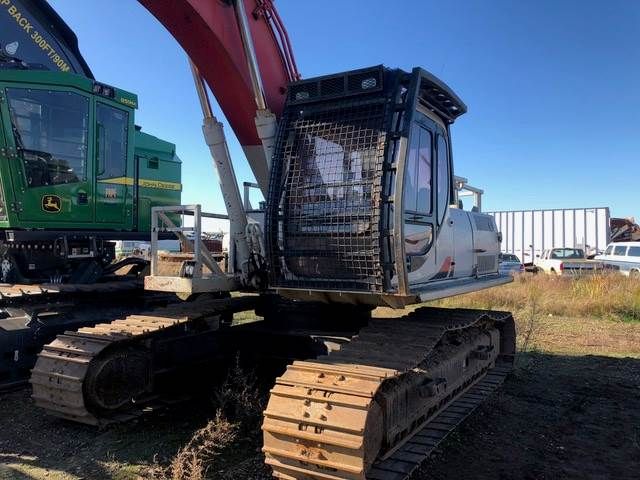

Link-Belt 240LX Road Builder
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.04 ft in (9763 mm) |
| Shipping Height Of Unit | 10.89 ft in (3318 mm) |
| Max Cutting Height | 33.24 ft in (10130 mm) |
| Max Loading Height | 23.2 ft in (7070 mm) |
| Max Reach Along Ground | 33.47 ft in (10200 mm) |
| Max Vertical Wall Digging Depth | 19.59 ft in (5970 mm) |
| Max Digging Depth | 21.82 ft in (6650 mm) |
| Boom/Stick Option (Hex) 1 | Boom 19'2" (5850mm) / Stick 10'2" (3090mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.04 ft in (9763 mm) |
| Max Cutting Height | 37.54 ft in (11440 mm) |
| Shipping Height Of Unit | 10.89 ft in (3318 mm) |
| Max Loading Height | 27.14 ft in (8270 mm) |
| Max Reach Along Ground | 33.47 ft in (10200 mm) |
| Max Vertical Wall Digging Depth | 14.93 ft in (4550 mm) |
| Max Digging Depth | 18.12 ft in (5520 mm) |
| Boom/Stick Option (Hex) 2 | High Lift Boom 19'2" (5850mm) / Stick 10'2" (3090mm) |
Dimensions
| Ground Clearance | 2.32 ft in (705 mm) |
| Height To Top Of Cab | 10.89 ft in (3318 mm) |
| Width To Outside Of Tracks | 11.96 ft in (3643 mm) |
| Length Of Track On Ground | 12.83 ft in (3910 mm) |
| Tail Swing Radius | 9.64 ft in (2936 mm) |
| Removal Counterweight Clearance | 4.65 ft in (1417 mm) |
Undercarriage
| Track Gauge | 9.66 ft in (2943 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Ground Pressure | 7.22 psi (49.79 kPa) |
| Number Of Shoes Per Side | 47 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3 mph (4.83 km/h) |
| Number Of Track Rollers Per Side | 8 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | BB-6BG1T |
| Net Power | 162 hp (120.9 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 415 lb ft (562.7 Nm) |
| Displacement | 396 cu in (6.5 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1800 rpm |
Operational
| Operating Weight | 66509 lb (30168 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Hydraulic System Fluid Capacity | 59.5 gal (225 L) |
| Engine Oil Capacity | 6.4 gal (24 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal (6 L) |
| Alternator Supplied Amperage | 40 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 112 gal/min (424 L/min) |
Swing Mechanism
| Swing Speed | 8.2 rpm |
| Swing Torque | 73020 lb ft (99001.9 Nm) |
