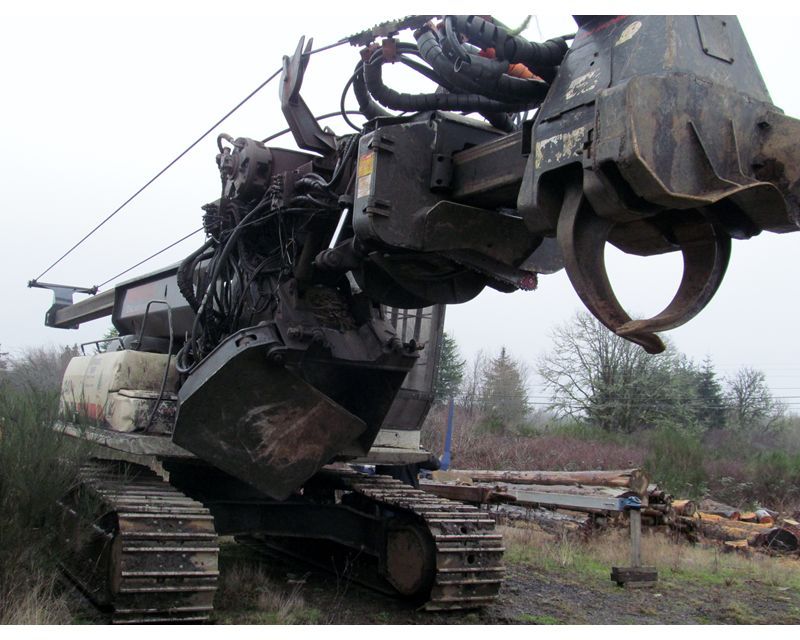

Link-Belt 240X2
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.58 ft in (9930 mm) |
| Shipping Height Of Unit | 10.34 ft in (3150 mm) |
| Max Cutting Height | 32.03 ft in (9760 mm) |
| Max Loading Height | 22.18 ft in (6760 mm) |
| Max Reach Along Ground | 33.14 ft in (10100 mm) |
| Max Vertical Wall Digging Depth | 20.15 ft in (6140 mm) |
| Max Digging Depth | 22.64 ft in (6900 mm) |
| Boom/Stick Option (Hex) 1 | Boom 19'2" (5850mm) / Stick 9'10" (2500mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 32.75 ft in (9980 mm) |
| Max Cutting Height | 31.37 ft in (9560 mm) |
| Shipping Height Of Unit | 10.86 ft in (3310 mm) |
| Max Loading Height | 21.49 ft in (6550 mm) |
| Max Reach Along Ground | 31.6 ft in (9630 mm) |
| Max Vertical Wall Digging Depth | 18.71 ft in (5700 mm) |
| Max Digging Depth | 21 ft in (6400 mm) |
| Boom/Stick Option (Hex) 2 | Boom 19'2" (5850mm) / Stick 8'2" (2500mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 32.52 ft in (9910 mm) |
| Max Cutting Height | 33.04 ft in (10070 mm) |
| Max Loading Height | 23.17 ft in (7060 mm) |
| Shipping Height Of Unit | 10.86 ft in (3310 mm) |
| Max Reach Along Ground | 34.85 ft in (10620 mm) |
| Max Vertical Wall Digging Depth | 21.92 ft in (6680 mm) |
| Max Digging Depth | 24.35 ft in (7420 mm) |
| Boom/Stick Option (Hex) 3 | Boom 19'2" (5850mm) / Stick 11'6" (3520mm) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Height To Top Of Cab | 10.14 ft in (3090 mm) |
| Width To Outside Of Tracks | 11.13 ft in (3390 mm) |
| Length Of Track On Ground | 12.6 ft in (3840 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 31.5 in (800 mm) |
| Number Of Track Rollers Per Side | 9 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.4 mph (5.48 km/h) |
| Ground Pressure | 5.37 psi (37.03 kPa) |
| Number Of Shoes Per Side | 51 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | AH-4HK1X |
| Net Power | 177 hp (132 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 469 lb ft (635.9 Nm) |
| Displacement | 317.4 cu in (5.2 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 54895 lb (24900 kg) |
| Fuel Capacity | 108.4 gal (410 L) |
| Cooling System Fluid Capacity | 6.7 gal (25.2 L) |
| Hydraulic System Fluid Capacity | 66.1 gal (250 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 6.2 gal (23.1 L) |
| Swing Drive Fluid Capacity | 2.6 gal (9.7 L) |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 123.6 gal/min (467.9 L/min) |
Swing Mechanism
| Swing Speed | 10.7 rpm |
| Swing Torque | 55243 lb ft (74899.5 Nm) |
Buckets
| Reference Bucket Capacity | 1.7 yd3 (1.3 m3) |
| Minimum Bucket Capacity | 0.8 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
