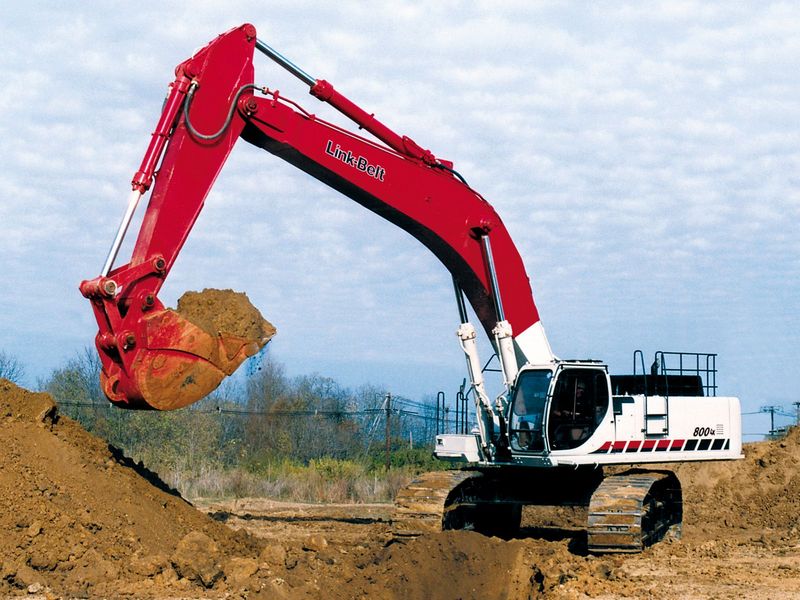

Link-Belt 800LX
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 46.4 ft in (14140 mm) |
| Shipping Height Of Unit | 15.79 ft in (4810 mm) |
| Max Cutting Height | 42.36 ft in (12910 mm) |
| Max Loading Height | 29.27 ft in (8920 mm) |
| Max Reach Along Ground | 45.41 ft in (13840 mm) |
| Max Vertical Wall Digging Depth | 21.13 ft in (6440 mm) |
| Max Digging Depth | 28.52 ft in (8690 mm) |
| Boom/Stick Option (Hex) 1 | Boom 27'7" (8400mm) / Stick 12'0" (3660mm) |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 46.26 ft in (14100 mm) |
| Max Cutting Height | 44.62 ft in (13600 mm) |
| Shipping Height Of Unit | 16.41 ft in (5000 mm) |
| Max Loading Height | 31.21 ft in (9510 mm) |
| Max Reach Along Ground | 48.17 ft in (14680 mm) |
| Max Vertical Wall Digging Depth | 25.43 ft in (7750 mm) |
| Max Digging Depth | 31.07 ft in (9470 mm) |
| Boom/Stick Option (Hex) 2 | Boom 27'7" (8400mm) / Stick 14'7" (4440mm) |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 44.99 ft in (13710 mm) |
| Max Cutting Height | 48.1 ft in (14660 mm) |
| Max Loading Height | 33.37 ft in (10170 mm) |
| Shipping Height Of Unit | 20.25 ft in (6170 mm) |
| Max Reach Along Ground | 52.04 ft in (15860 mm) |
| Max Vertical Wall Digging Depth | 29.89 ft in (9110 mm) |
| Max Digging Depth | 34.98 ft in (10660 mm) |
| Boom/Stick Option (Hex) 3 | Boom 27'7" (8400mm) / Stick 18'5" (5620mm) |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 42.69 ft in (13010 mm) |
| Shipping Height Of Unit | 16.57 ft in (5050 mm) |
| Max Cutting Height | 38.59 ft in (11760 mm) |
| Max Loading Height | 25.89 ft in (7890 mm) |
| Max Reach Along Ground | 39.34 ft in (11990 mm) |
| Max Digging Depth | 23.07 ft in (7030 mm) |
| Max Vertical Wall Dig Depth | 13.95 ft in (4250 mm) |
| Boom/Stick Option (Hex) 4 | Boom 23'9" (7250mm) / Stick 9'9" (2960mm) |
Dimensions
| Ground Clearance | 2.92 ft in (890 mm) |
| Height To Top Of Cab | 12.44 ft in (3790 mm) |
| Width To Outside Of Tracks | 11.75 ft in (3580 mm) |
| Length Of Track On Ground | 16.64 ft in (5070 mm) |
| Tail Swing Radius | 13.36 ft in (4070 mm) |
| Removal Counterweight Clearance | 5.22 ft in (1590 mm) |
Undercarriage
| Track Gauge | 9.29 ft in (2830 mm) |
| Shoe Size | 29.53 in (750 mm) |
| Max Travel Speed | 2.7 mph (4.35 km/h) |
| Number Of Carrier Rollers Per Side | 3 |
| Number Of Shoes Per Side | 51 |
| Ground Pressure | 13 psi (89.64 kPa) |
| Number Of Track Rollers Per Side | 9 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | BB-6WG1XQB |
| Net Power | 444 hp (331.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1410 lb ft (1911.8 Nm) |
| Displacement | 957 cu in (15.7 L) |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 174600 lb (79197.3 kg) |
| Fuel Capacity | 237.8 gal (900 L) |
| Cooling System Fluid Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 190.3 gal (720 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 12.5 gal (47 L) |
| Swing Drive Fluid Capacity | 3.6 gal (13.5 L) |
| Alternator Supplied Amperage | 90 amps |
| Hydraulic System Relief Valve Pressure | 4970 psi (34267 kPa) |
| Hydraulic Pump Flow Capacity | 264.2 gal/min (1000.2 L/min) |
Swing Mechanism
| Swing Speed | 7.6 rpm |
| Swing Torque | 177750 lb ft (240996.7 Nm) |
Buckets
| Reference Bucket Capacity | 3 yd3 (2.3 m3) |
| Minimum Bucket Capacity | 2.5 yd3 (1.9 m3) |
| Maximum Bucket Capacity | 6 yd3 (4.6 m3) |
