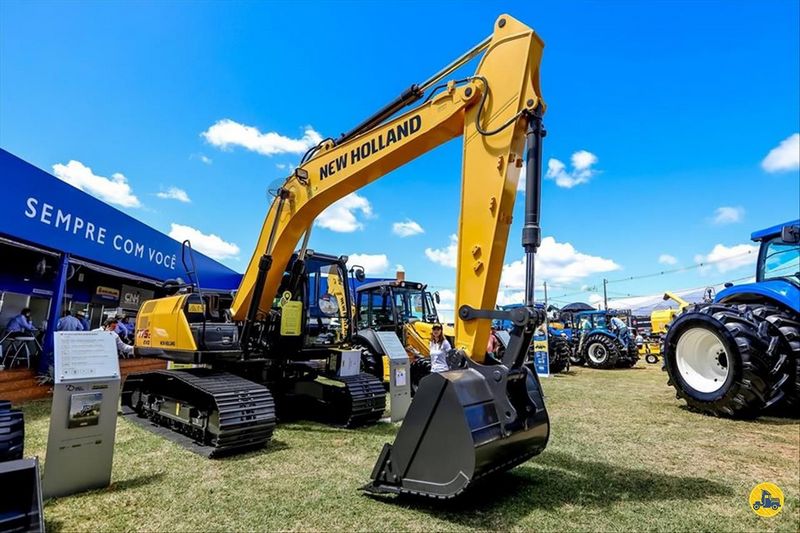

New Holland E215LC
Browse All New Holland or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 30.3 ft in (9235 mm) |
| Max Loading Height | 21.29 ft in (6488 mm) |
| Max Vertical Wall Digging Depth | 18.35 ft in (5592 mm) |
| Max Digging Depth | 19.1 ft in (5821 mm) |
| Boom/Stick Option (Hex) 1 | Boom / stick 2080mm |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 31.14 ft in (9490 mm) |
| Max Cutting Height | 31.01 ft in (9450 mm) |
| Shipping Height Of Unit | 9.77 ft in (2975 mm) |
| Max Loading Height | 21.86 ft in (6661 mm) |
| Max Reach Along Ground | 30.42 ft in (9270 mm) |
| Max Vertical Wall Digging Depth | 19.49 ft in (5938 mm) |
| Max Digging Depth | 20.15 ft in (6141 mm) |
| Boom/Stick Option (Hex) 2 | boom / stick 2400mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 31.73 ft in (9670 mm) |
| Max Loading Height | 22.67 ft in (6908 mm) |
| Max Reach Along Ground | 32.04 ft in (9765 mm) |
| Max Vertical Wall Digging Depth | 21.35 ft in (6505 mm) |
| Max Digging Depth | 21.92 ft in (6681 mm) |
| Boom/Stick Option (Hex) 3 | boom / stick 2900mm |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 31.43 ft in (9579 mm) |
| Max Loading Height | 22.76 ft in (6935 mm) |
| Max Reach Along Ground | 33.35 ft in (10165 mm) |
| Max Digging Depth | 23.76 ft in (7241 mm) |
| Boom/Stick Option (Hex) 4 | boom / stick 3500mm |
| Max Vertical Wall Dig Depth | 23.17 ft in (7062 mm) |
Dimensions
| Ground Clearance | 1.56 ft in (473 mm) |
| Height To Top Of Cab | 9.77 ft in (2975 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12 ft in (3656 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.51 ft in (1067 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 7.4 psi (51 kPa) |
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 3.73 mph (6 km/h) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 0 |
| Engine Model | CNH - F4BE8604B |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 486.8 lb ft (660 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged and intercooler |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 48391.5 lb (21950 kg) |
| Fuel Capacity | 77.2 gal (292 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Hydraulic System Fluid Capacity | 71.4 gal (270 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 4.5 gal (17 L) |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 111 gal/min (420 L/min) |
Swing Mechanism
| Swing Speed | 11 rpm |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 0.6 yd3 (0.5 m3) |
