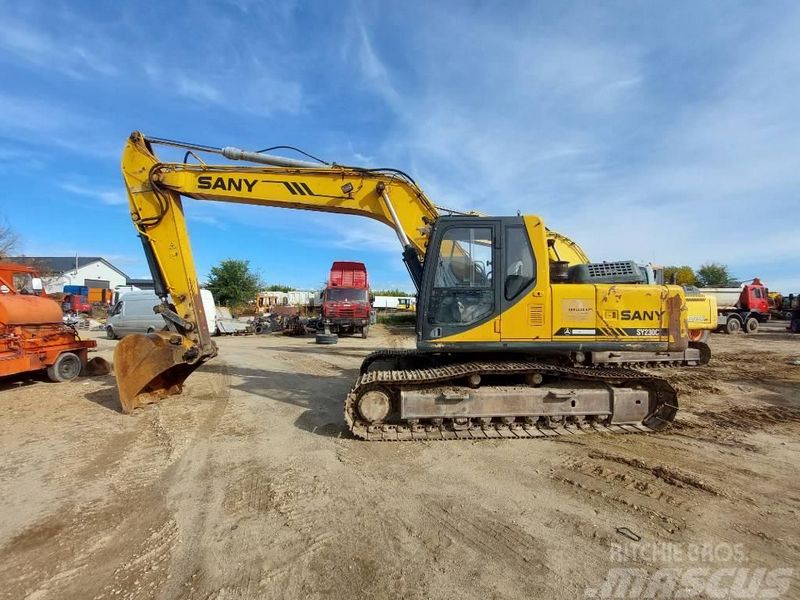

Sany SY230
Browse All Sany or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 32.09 ft in (9780 mm) |
| Shipping Height Of Unit | 10.37 ft in (3160 mm) |
| Max Loading Height | 21.38 ft in (6515 mm) |
| Max Reach Along Ground | 33.4 ft in (10180 mm) |
| Max Vertical Wall Digging Depth | 19.72 ft in (6010 mm) |
| Max Digging Depth | 22.71 ft in (6920 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Width To Outside Of Tracks | 9.78 ft in (2980 mm) |
| Length Of Track On Ground | 11.95 ft in (3640 mm) |
| Tail Swing Radius | 12.67 ft in (3860 mm) |
Undercarriage
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB6.7-155 |
| Gross Power | 190.5 hp (142 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 408.9 cu in (6.7 L) |
Operational
| Operating Weight | 50485.9 lb (22900 kg) |
| Hydraulic Pump Flow Capacity | 120.5 gal/min (456 L/min) |
Buckets
| Reference Bucket Capacity | 1.4 yd3 (1 m3) |
