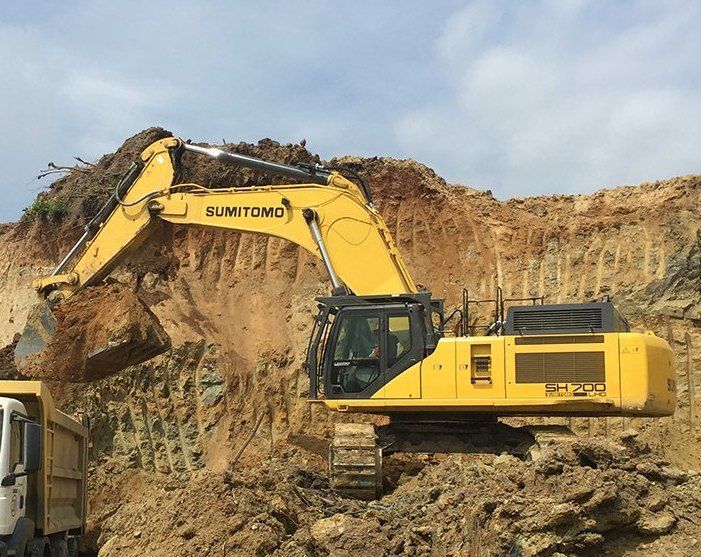

Sumitomo SH700LHD-5
Browse All Sumitomo or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 43.61 ft in (13290 mm) |
| Shipping Height Of Unit | 14.11 ft in (4300 mm) |
| Max Loading Height | 26.32 ft in (8020 mm) |
| Max Reach Along Ground | 42.33 ft in (12900 mm) |
| Max Vertical Wall Digging Depth | 22.54 ft in (6870 mm) |
| Max Digging Depth | 27.56 ft in (8400 mm) |
Dimensions
| Ground Clearance | 2.71 ft in (825 mm) |
| Width To Outside Of Tracks | 10.18 ft in (3100 mm) |
| Length Of Track On Ground | 15.42 ft in (4700 mm) |
| Tail Swing Radius | 13.03 ft in (3970 mm) |
Undercarriage
| Shoe Size | 25.6 in (650 mm) |
| Max Travel Speed | 2.55 mph (4.1 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AH6WGIXYSS-01 |
| Gross Power | 462.7 hp (345 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 958.1 cu in (15.7 L) |
Operational
| Operating Weight | 150134.8 lb (68100 kg) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 232.5 gal/min (880 L/min) |
Buckets
| Reference Bucket Capacity | 3.8 yd3 (2.9 m3) |
