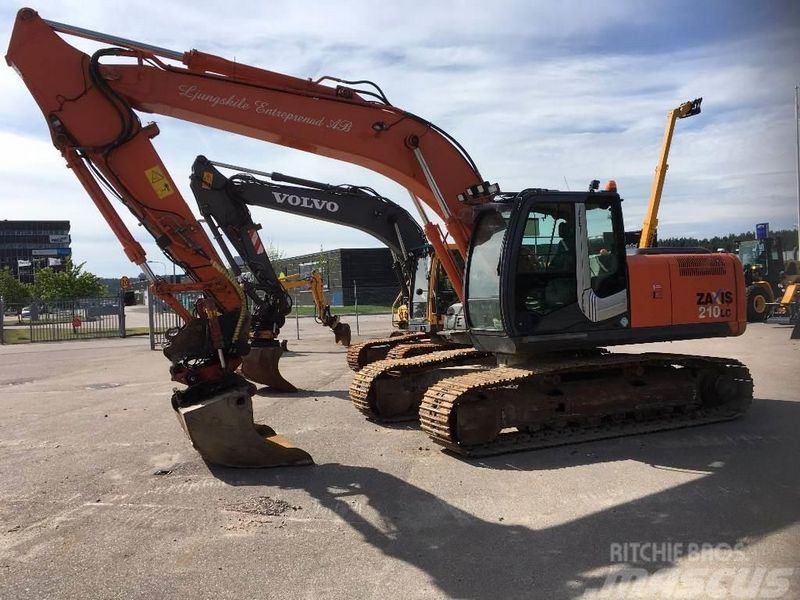

Tata Hitachi ZAXIS210LCK
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 31.5 ft in (9600 mm) |
| Max Loading Height | 22.25 ft in (6780 mm) |
| Max Reach Along Ground | 31.99 ft in (9750 mm) |
| Max Vertical Wall Digging Depth | 19.85 ft in (6050 mm) |
| Max Digging Depth | 21.89 ft in (6670 mm) |
| Boom/Stick Option (Hex) 1 | Boom 18'8" (5680mm)/Stick 9'7" (2910mm) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Height To Top Of Cab | 10.11 ft in (3080 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 12.01 ft in (3660 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.38 ft in (1030 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Ground Pressure | 6.53 psi (45 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 8 |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
Engine
| Engine Make | 2353 |
| Engine Model | AA-6BG1T |
| Net Power | 147.6 hp (110 kw) |
| Max Torque | 405.7 lb ft (550 Nm) |
| Aspiration | turbocharged |
| Displacement | 396.3 cu in (6.5 L) |
Operational
| Operating Weight | 48060.8 lb (21800 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Hydraulic System Fluid Capacity | 52.9 gal (200 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal (6.2 L) |
| Hydraulic System Relief Valve Pressure | 4974.8 psi (34300 kPa) |
| Hydraulic Pump Flow Capacity | 102.5 gal/min (388 L/min) |
Swing Mechanism
| Swing Speed | 13.3 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.8 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.6 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
