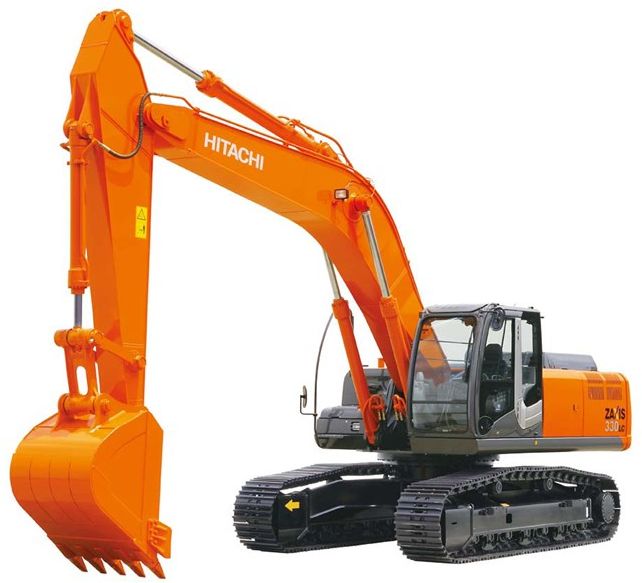

Tata Hitachi ZAXIS330
Browse All Tata Hitachi or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 32.39 ft in (9870 mm) |
| Max Loading Height | 22.41 ft in (6830 mm) |
| Max Reach Along Ground | 34.03 ft in (10370 mm) |
| Max Vertical Wall Digging Depth | 18.44 ft in (5620 mm) |
| Max Digging Depth | 22.48 ft in (6850 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'0" (6400mm)/Stick 8'4" (2660mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 33.57 ft in (10230 mm) |
| Max Loading Height | 23.4 ft in (7130 mm) |
| Max Reach Along Ground | 35.77 ft in (10900 mm) |
| Max Vertical Wall Digging Depth | 21.26 ft in (6480 mm) |
| Max Digging Depth | 24.22 ft in (7380 mm) |
| Boom/Stick Option (Hex) 2 | Boom 21'0" (6400mm)/Stick 10'6" (3200mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 34.85 ft in (10620 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 38.33 ft in (11680 mm) |
| Max Vertical Wall Digging Depth | 24.18 ft in (7370 mm) |
| Max Digging Depth | 26.84 ft in (8180 mm) |
| Boom/Stick Option (Hex) 3 | Boom 21'0" (6400mm)/Stick 13'2" (4000mm) |
Dimensions
| Ground Clearance | 1.65 ft in (500 mm) |
| Height To Top Of Cab | 10.24 ft in (3120 mm) |
| Width To Outside Of Tracks | 10.47 ft in (3190 mm) |
| Length Of Track On Ground | 12.24 ft in (3730 mm) |
| Tail Swing Radius | 10.9 ft in (3320 mm) |
| Removal Counterweight Clearance | 3.75 ft in (1140 mm) |
Undercarriage
| Track Gauge | 8.5 ft in (2590 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Shoes Per Side | 45 |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 9.14 psi (63 kPa) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2353 |
| Engine Model | AA-6HK1X |
| Net Power | 246.8 hp (184 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 643.9 lb ft (873 Nm) |
| Displacement | 475.4 cu in (7.8 L) |
| Aspiration | turbocharged |
| Torque Measured @ | 1700 rpm |
Operational
| Operating Weight | 68343.4 lb (31000 kg) |
| Fuel Capacity | 148 gal (560 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Swing Drive Fluid Capacity | 4.4 gal (16.3 L) |
| Hydraulic System Relief Valve Pressure | 5047.4 psi (34800 kPa) |
| Hydraulic Pump Flow Capacity | 153.3 gal/min (580 L/min) |
Swing Mechanism
| Swing Speed | 11.8 rpm |
Buckets
| Reference Bucket Capacity | 1.9 yd3 (1.4 m3) |
| Minimum Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Maximum Bucket Capacity | 2.5 yd3 (1.9 m3) |
