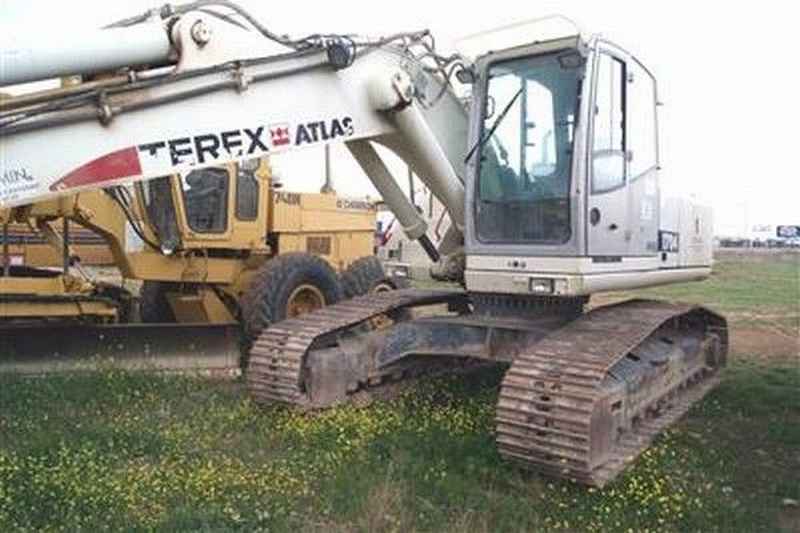

Terex 1604LC
Browse All Terex or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Max Cutting Height | 30.84 ft in (9400 mm) |
| Max Digging Depth | 18.38 ft in (5600 mm) |
| Boom/Stick Option (Hex) 1 | hydraulically adjustable boom w/ stick 2200mm |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 31.99 ft in (9750 mm) |
| Max Digging Depth | 20.02 ft in (6100 mm) |
| Boom/Stick Option (Hex) 2 | hydraulically adjustable boom w/ stick 2700mm |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 29.63 ft in (9030 mm) |
| Max Digging Depth | 19.03 ft in (5800 mm) |
| Boom/Stick Option (Hex) 3 | monobloc boom w/ stick 2200 |
Boom/Stick Option (Hex) 4
| Max Cutting Height | 30.52 ft in (9300 mm) |
| Max Reach Along Ground | 30.84 ft in (9400 mm) |
| Max Digging Depth | 20.67 ft in (6300 mm) |
| Boom/Stick Option (Hex) 4 | monobloc boom w/ stick 2700mm |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Height To Top Of Cab | 10 ft in (3045 mm) |
| Width To Outside Of Tracks | 9.19 ft in (2800 mm) |
| Tail Swing Radius | 8.49 ft in (2585 mm) |
| Removal Counterweight Clearance | 3.71 ft in (1130 mm) |
Undercarriage
| Track Gauge | 7.22 ft in (2200 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 2.49 mph (4 km/h) |
Engine
| Engine Make | 2349 |
| Engine Model | BF6M 2012 C |
| Net Power | 165 hp (123.1 kw) |
| Gross Power | 194 hp (144.7 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharging/intercooler |
| Displacement | 292.4 cu in (4.8 L) |
Operational
| Operating Weight | 50706.4 lb (23000 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operating Voltage | 24 V |
| Hydraulic System Relief Valve Pressure | 4931.3 psi (34000 kPa) |
| Hydraulic Pump Flow Capacity | 79.3 gal/min (300 L/min) |
Swing Mechanism
| Swing Torque | 43516.2 lb ft (59000 Nm) |
| Swing Speed | 8.5 rpm |
Buckets
| Reference Bucket Capacity | 1.6 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 0.9 yd3 (0.7 m3) |
| Maximum Bucket Capacity | 1.6 yd3 (1.2 m3) |
