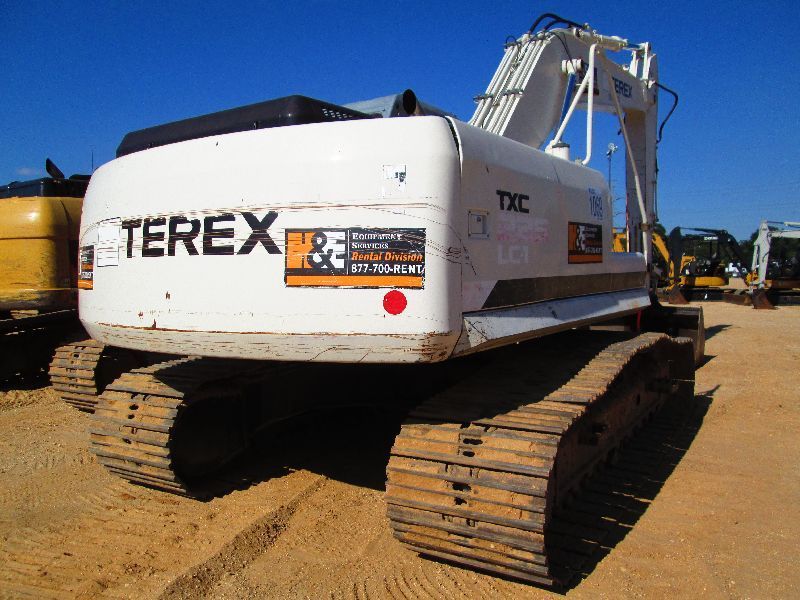

Terex TXC225LC-1
Browse All Terex or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 31.21 ft in (9510 mm) |
| Shipping Height Of Unit | 9.95 ft in (3030 mm) |
| Max Cutting Height | 31.7 ft in (9660 mm) |
| Max Loading Height | 22.35 ft in (6810 mm) |
| Max Reach Along Ground | 31.94 ft in (9735 mm) |
| Max Vertical Wall Digging Depth | 19.84 ft in (6045 mm) |
| Max Digging Depth | 21.76 ft in (6630 mm) |
| Boom/Stick Option (Hex) 1 | 18.8'' (5700mm) boom w/ stick 9'6'' (2900mm) |
Boom/Stick Option (Hex) 2
| Max Cutting Height | 32.24 ft in (9825 mm) |
| Max Loading Height | 22.59 ft in (6885 mm) |
| Max Reach Along Ground | 30.84 ft in (9400 mm) |
| Max Vertical Wall Digging Depth | 19.8 ft in (6035 mm) |
| Max Digging Depth | 20.1 ft in (6125 mm) |
| Boom/Stick Option (Hex) 2 | 18.8'' (5700mm) boom w/ stick 7'9'' (2400mm) |
Boom/Stick Option (Hex) 3
| Max Cutting Height | 32.39 ft in (9870 mm) |
| Max Loading Height | 23.04 ft in (7020 mm) |
| Max Reach Along Ground | 33.57 ft in (10230 mm) |
| Max Vertical Wall Digging Depth | 21.53 ft in (6560 mm) |
| Max Digging Depth | 23.73 ft in (7230 mm) |
| Boom/Stick Option (Hex) 3 | 18.8'' (5700mm) boom w/ stick 11'6'' (3500mm) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 9.85 ft in (3000 mm) |
| Width To Outside Of Tracks | 9.81 ft in (2990 mm) |
| Length Of Track On Ground | 11.96 ft in (3645 mm) |
| Tail Swing Radius | 9.03 ft in (2750 mm) |
| Removal Counterweight Clearance | 3.63 ft in (1105 mm) |
Undercarriage
| Track Gauge | 7.85 ft in (2390 mm) |
| Shoe Size | 23.63 in (600 mm) |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Number Of Shoes Per Side | 49 |
| Number Of Track Rollers Per Side | 9 |
| Ground Pressure | 6.4 psi (44.13 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2253 |
| Engine Model | DE58TIS |
| Net Power | 148 hp (110.4 kw) |
| Power Measured @ | 1950 rpm |
| Max Torque | 445 lb ft (603.4 Nm) |
| Displacement | 353 cu in (5.8 L) |
| Aspiration | Turbocharged air to air intercooled |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 47400 lb (21500.3 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Hydraulic System Fluid Capacity | 58.2 gal (220 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Swing Drive Fluid Capacity | 1.4 gal (5 L) |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
| Hydraulic Pump Flow Capacity | 113.6 gal/min (430 L/min) |
Swing Mechanism
| Swing Speed | 12.3 rpm |
Buckets
| Reference Bucket Capacity | 1.1 yd3 (0.9 m3) |
| Minimum Bucket Capacity | 0.7 yd3 (0.5 m3) |
| Maximum Bucket Capacity | 1.7 yd3 (1.3 m3) |
